| Brand Name: | HSTECH |
| Model Number: | HS-NK250 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

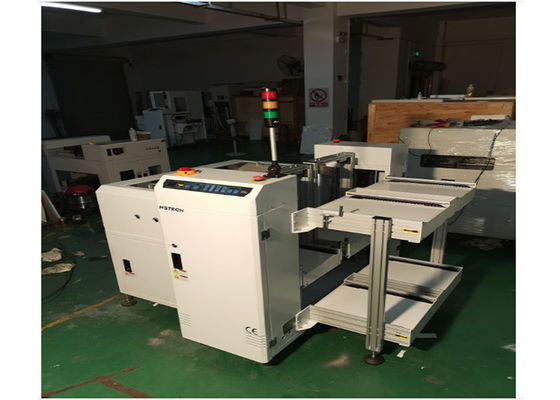

SMT Production Line Good / No-good board Separating Magazine NG OK PCB Unloader
Intorduction
This unit operates subsequent to the Automated Optical Inspection (AOI) process, playing a crucial role in the post-inspection handling of PCBs. Upon receiving a signal from the previous stage indicating the AOI inspection results, it automatically and efficiently segregates the PCBs into two distinct categories: those that do not conform to the specified standards (labeled as NG) and those that do conform (labeled as OK). This sophisticated process ensures that the PCBs are seamlessly routed into their designated magazines, thereby guaranteeing a highly efficient, organized, and streamlined sorting procedure for the printed circuit boards.
Technical details
| Function | Collect the NG/OK boards separately by receiving the signal. |
| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Board collect time | Each approx 6 seconds |
| Magazine change over time | Approx 30seconds |
| Track fixed side | Front side |
| Operation side | Front side |
| Conveyor belt | ESD |
| PCB thickness | Min 0.6mm |
| Pitch selection | 1-4(10mm pitch) |
| Power supply | 220V,50/60Hz,±10% |
| Power | 0.05kW |
| Air pressure | 4-6Bar |
| Air consumption | Max 15L/min |
| Number of magazines | Upper:1 magazine, Bottom side:2 magazines |
| Signal | SMEMA |
| Options |
1, Touch screen control mode. 2, Automatic width adjustment. 3, Magazines quantity up to customer requirement. |
Features
Model
| Model | HS-NK250 | HS-NK330 | HS-NK390 | HS-NK460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| PCB thickness | Min 0.6mm | Min 0.6mm | Min 0.6mm | Min 0.6mm |
| Magazine size | 355*320*563mm | 460*400*563 | 535*460*570mm | 535*530*570mm |
| Machine dimension | 1950*1600*1200mm | 2300*1760*1200mm | 2500*1880*1200mm | 2500*2160*1200mm |
| Weight | 220kg | 280kg | 340kg | 380kg |
The Product and Details
About Packaging
We offer a broad selection of SMT machines, equipment, and a wide range of machine parts. As a specialized supplier, our offerings encompass SMT machine components and accessories like Feeders, Nozzles, PCB turnover carts, SMT grease, Solder paste mixers, SMD counters, Laser Sensors, Filters, KIC thermal profilers, Servo Motors, and more.
Shenzhen Hansome Technology Co., Ltd. (HSTECH) is a renowned manufacturer in the realm of professional SMT board handling equipment. Our portfolio spans Loaders, Unloaders, Buffers, Conveyors, and other related machinery. As a high-tech enterprise with proprietary intellectual property rights, we are committed to the research, development, production, and sales of board handling equipment for SMT/THT production lines.
