 Introduction:

The RM-F550 is a newly developed Router Machine specifically designed for depaneling whole printed circuit board assemblies (PCBA) into individual boards. It features a highly stable platform to guarantee precision during operation, with a standard working platform size of 300*350mm.

Additionally, the machine offers an optional larger platform size of 400*600mm to accommodate various PCBA sizes. For ease of use, the RM-F550 provides user-friendly "visual" programming, enabling rapid and accurate online programming. Furthermore, it has the capability to detect the depaneling process in real-time.

Main features:

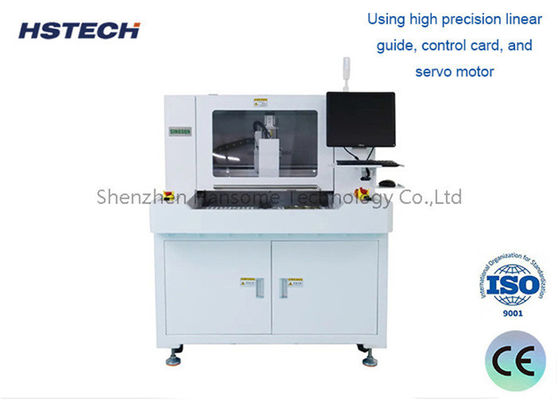

1. We provide customers with high-performance, highly stable, and secure industrial equipment, utilizing high-precision linear guides, control cards, and servo motors to ensure optimal performance.

2. Our 4-axis motion control system is based on high-resolution CCD visual alignment, employing a dual-platform design to enhance production efficiency.

3. The routing spindle is of German brand, operating at speeds ranging from 40,000 to 60,000 RPM, ensuring precise and efficient cutting.

4. Taiwan's Hiwin brand guides are utilized to guarantee the precision and smoothness of the moving system.

5. The equipment features tool life monitoring. After the cutter has traveled a certain distance, it automatically raises and lowers to the position of another unused blade, optimizing tool usage and extending tool life.

6. This machine is suitable for depaneling straight-line, arc, and circular connected boards, accommodating a wide range of PCB shapes and sizes.

7. The PCB substrate undergoes two-stage continuous sliding processing, minimizing waiting time and maximizing production throughput.

Key Features

Precision Cutting
Designed to accurately cut and separate individual PCBs from larger panels with minimal damage.

Offline Operation
Operates independently of the main production line, allowing for flexible setup and use without interrupting ongoing processes.

User-Friendly Interface
Often equipped with a touchscreen interface for easy programming and operation.

Multiple Cutting Techniques
Supports various cutting methods, such as routing, laser cutting, or knife cutting, depending on the machine.

Dust Extraction System
Integrated systems to minimize dust and debris during the cutting process, ensuring a clean working environment.

Material Compatibility
Capable of handling different materials, including FR-4, aluminum, and flexible PCBs.

Automated Features
Some models include features like automatic height adjustment and tool changes to enhance efficiency.

Benefits

Increased Efficiency
Reduces manual labor and speeds up the production process by automating PCB cutting.

Quality Control
Ensures high-quality cuts that reduce the likelihood of defects in the final product.

Flexibility
Allows for quick changes in production runs without requiring extensive reconfiguration of the main assembly line.

Cost-Effective
Helps minimize waste and improves overall production efficiency, which can lead to cost savings.

Applications

Electronics Manufacturing
Widely used in the production of consumer electronics, automotive components, and industrial equipment.

Prototyping
Useful for rapid prototyping of PCBs before full-scale production
