| Brand Name: | HSTECH |
| Model Number: | VM-400 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |

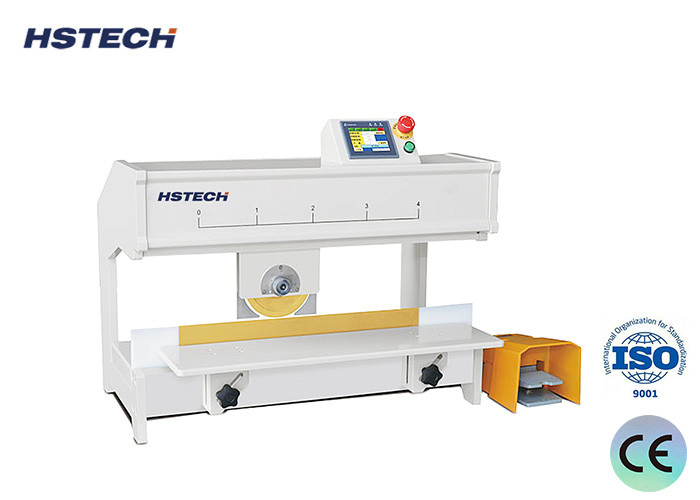

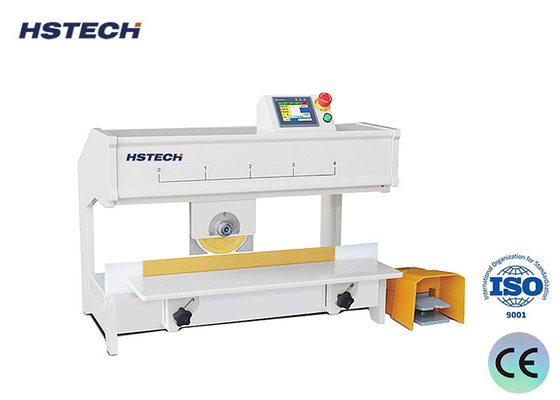

Experience Precision Cutting with Our Top-of-the-Line PCB Router Machine
Introduce
The PCB Router Machine is a highly utilized tool in the field of printed circuit board (PCB) cutting and separation, offering an extensive range of features and capabilities. Specifically engineered for precise cutting and efficient detachment of PCBs, this machine integrates cutting-edge technologies to guarantee accurate and dependable results across diverse manufacturing environments. With its sturdy construction and intuitive control system, it seamlessly integrates into production lines, ultimately boosting overall productivity and quality.
Equipment Composition: The PCB Router Machine consists of several key components: a sturdy frame that supports the entire structure, a workbench designed to hold PCBs securely during the cutting process, a set of cutting tools tailored for PCB separation, a control and monitoring system for setting parameters and overseeing operations, and a motion control system that directs the precise movements of the cutting tools.
Automated Cutting: By pre-programming cutting paths, speeds, depths, and other parameters, the PCB Router Machine automates the cutting process, significantly reducing the need for manual intervention and thereby enhancing both productivity and accuracy.
Versatile Cutting Techniques: This machine is capable of adapting to various cutting methods, including linear, V-shaped, circular, and other customized techniques, making it suitable for a wide range of PCB designs.
Precision Cutting: The PCB Router Machine utilizes precision tools and advanced technology to ensure accurate cutting along predefined paths and specifications, maintaining consistent quality throughout the production process.
Deburring Capability: After cutting, the machine is equipped with deburring features that smooth out edges, removing burrs and residues, thereby enhancing the overall quality and appearance of the PCBs.
Efficiency and Cost-Effectiveness: Automated operation and precision cutting significantly expedite production, minimizing the use of human resources and time. Additionally, reduced waste and damage contribute to cost savings, making the PCB Router Machine a highly efficient and cost-effective solution for PCB manufacturing.
Specification
| Model | VM-400 | VM-600 | ||||||
| Machine Dimension | 420x520x860mm | 620x720x1060mm | ||||||
| Voltage | 220V 50/60Hz | 220V 50/60Hz | ||||||
| Max Cutting Length | 400mm | 600mm | ||||||
| PCB Thickness | 0.8~3mm | 0.8~3mm | ||||||
| Separation speed | 600mm/second | 600mm/second | ||||||
| Separation type | Circular blade/linear blade | Circular blade/linear blade | ||||||
| Components height | 0~70mm | 0~70mm | ||||||
| Working temperature | 30~55℃ | 30~55℃ | ||||||
| Weight | 50kg | 60kg |
Features
High-Speed Cutting Efficiency: The PCB Router Machine excels in rapid cutting, providing substantial economic benefits for large-scale production runs, regardless of the quantity involved.
Touchscreen-Enabled Precision Alignment: Utilizing a touchscreen interface for adjusting the cutting distance, the machine ensures precise alignment with V-slots on PCBs, delivering accurate and flawless cutting results.
Minimized Stress During Panel Division: The integration of both moving and fixed blades during panel splitting significantly reduces stress on PCBs, preventing welding point fractures and maintaining structural integrity.
Static PCB, Mobile Blade Operation: During the splitting process, the PCB remains stationary while the blade moves, ensuring consistent quality and precision in every cut.
Enhanced Efficiency and Superior Quality: Compared to manual methods, the machine drastically reduces stress on welding points, thereby improving both operational efficiency and the quality of the final product.
Versatile Cutting Distance Adjustment: With a customizable cutting distance range spanning from 1 to 100 meters, the machine can accommodate a wide variety of customer requirements, enhancing overall operational flexibility and efficiency.
Flexible Starting Position Configuration: The ability to freely set the initial cutting position optimizes cutting layouts, contributing to the machine's longevity and extended service life by minimizing wear and tear.
Counting Functionality for Data Management: Equipped with a counting feature, the machine enables comprehensive post-production data analysis and reporting, facilitating improved production oversight, traceability, and decision-making.

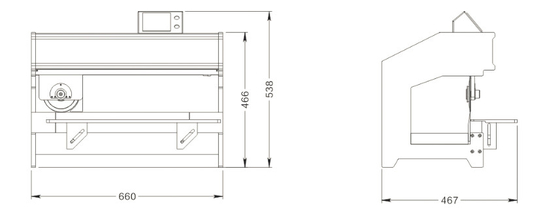

Machine Size
About Packaging
