PCB Router Machine With High-Pixel CCD Magnifying Lens And Automatic Alignment Correction

Milling Cutter Routing Kit Double Platform Dust Collector PCB Router Machine

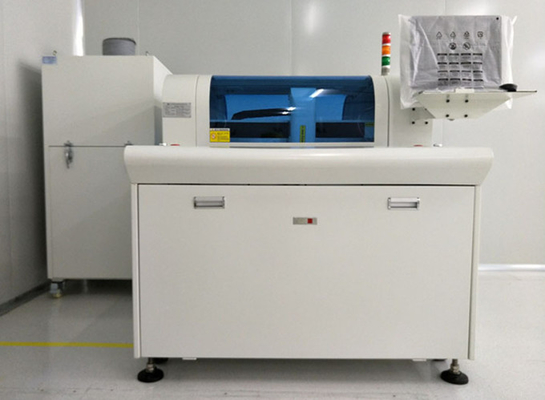

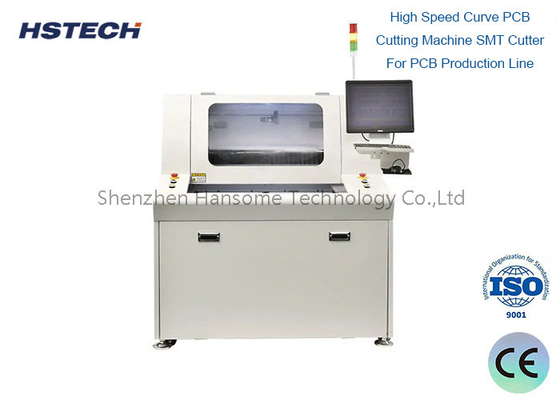

Machine introduction

This device uses a high-speed milling cutter to segment a multi-connected PCB board along a pre-programmed path, eliminating manual, V-CUT, or PUSH cutting methods that can cause defects. This enhances product quality and reduces scrap rates. The machine features a user-friendly WindowsXP-based interface with automatic cutting path correction and a high-resolution CCD for programming, supporting both block and single-step editing. The dual-platform PCB loading/unloading mechanism minimizes downtime, ensuring maximum production efficiency.

Main features

1. Featuring a high-pixel CCD magnifying lens, the device offers auxiliary programming and editing capabilities, enhancing accuracy, precision, and image clarity.
2. The automatic MARK point positioning and correction system provides real-time visualization of the moving path and simulated router tracking, ensuring clarity at a glance. The system's automatic alignment correction function boosts cutting accuracy, allowing machine vision to automatically adjust if the PCB deviates within 3mm, reducing board placement accuracy requirements and increasing efficiency.
3. The device supports copying functions for left and right worktables, block copying, display, multi-angle connection board copying, single-step tracking modification, and block editing modification, simplifying program production and enhancing editing efficiency.
4. Equipped with a high-power imported fan and a 10V high-voltage static elimination device, the vacuum cleaner offers effective vacuuming with reduced noise levels.
5. The tool life monitoring system automatically switches to a new blade after a certain cutting distance, with customizable up and down settings based on blade length, extending cutter life.
6. The transparent safety door design allows clear visibility of the process. The door can be opened for emergency stops or 50% deceleration, enabling programmers to monitor the machining process without stopping the program.
7. The PCB substrate undergoes two-stage continuous sliding processing, minimizing waiting time and maximizing production efficiency.

Sepcfication

Dust Collector Specification

Machine details
