| Brand Name: | HSTECH |
| Model Number: | RM-F550 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
High Speed Curve PCB Cutting Machine SMT Cutter For PCB Production Line
Machine introduction

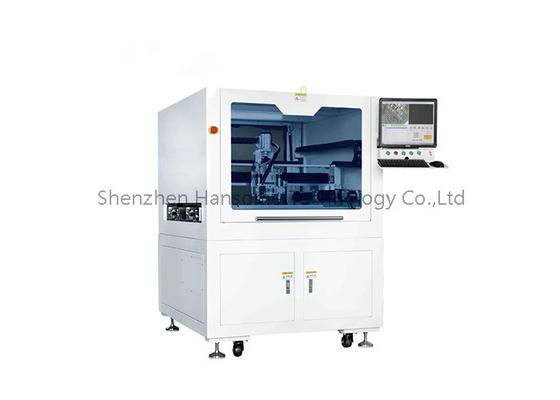

Introducing the RM-F550, a state-of-the-art Router Machine tailored for the precise depaneling of printed circuit board assemblies (PCBA) into individual components. This revolutionary machine features a sturdy and dependable platform, guaranteeing unmatched precision in its operations, with a standard platform size of 300*350mm.
For those working on larger-scale projects, an optional 400*600mm platform is readily available. The RM-F550 boasts intuitive "visual" programming, enabling swift and precise online configurations, along with real-time oversight of the depaneling process.
Main features
We provide customers with high-performance, highly stable, and secure industrial equipment, utilizing high-precision linear guides, control cards, and servo motors.
Based on high-resolution CCD visual alignment, our 4-axis motion control system employs a dual platform to enhance production efficiency.
The routing spindle is of German brand, operating at speeds ranging from 40,000 to 60,000 RPM.
The Taiwan Hiwin brand guide ensures precision and smooth movement within the moving system.
Tool life monitoring is in place; once the cutter has traveled a certain distance, it automatically rises and switches to another unused blade.
This equipment is suitable for depaneling straight-line, arc, and circular connected boards.

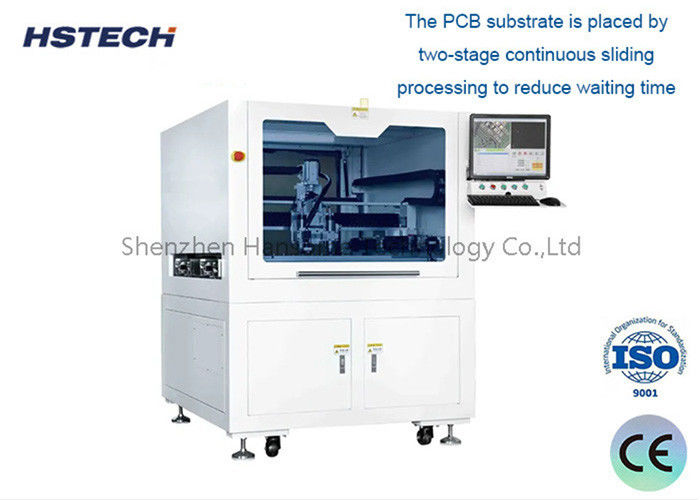

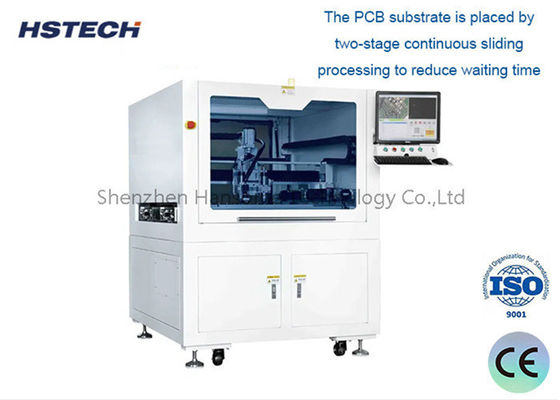

The PCB substrate undergoes two-stage continuous sliding processing, minimizing waiting time and maximizing production output.
Sepcfication
| Model | RM-F328 | ||
| Structure | Single Spindle,double platform | ||
| Efficienty cutting length | 300*350mm | ||
| Cutting types | Straight line, arc, circular | ||
| Moving speed | X/Y axis 1000mm/s,Z axis 500mm/s | ||
| Dust Collection method | Upper collection | ||
| Spindle | 40000~60000rpm | ||
| Routing Spindle | Max60000rpm | ||
| Cutting speed | 1-100mm/s adjustment | ||
| Cutting accuracy | ±0.03mm | ||
| Repeat accuracy | ±0.01mm | ||
| Programming | colorful CCD | ||
| External connect | USB | ||
| Router kit | milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel | ||
| Power supply | 380V | ||
| Machine power | 2000W | ||
| Dust collector size | 600*470*730mm | ||
| Dust collector power | 2.2Kw,380V | ||
| Dust collector air pressure | 4-6KG/cm³ | ||
| Security door | Manual door | ||
| Error alarm | Yes | ||
| Program method | Self programing,camera controlled by keyboard and mouser | ||
About Packaging
We have not only SMT machines and equipment, but also many machine parts.We are supplier of smt machine parts and equipment. such as Feeder,Nozzle,PCB board turnover cart,SMT grease,Solder paste mixer,SMD counter,Laser Sensor,Filter,KIC thermal profiler,Servo Motor and so on.
At Shenzhen Hansome Technology, we strive for excellence in delivering cutting-edge technology and exceptional customer service. We look forward to the opportunity to serve your business needs. Should you have any questions or require further information, please do not hesitate to contact us!
