| Brand Name: | HSTECH |
| Model Number: | RM-F550 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
4 Aixs Offline Dual Platform Windows System Control PCB Router Machine
Machine introduction

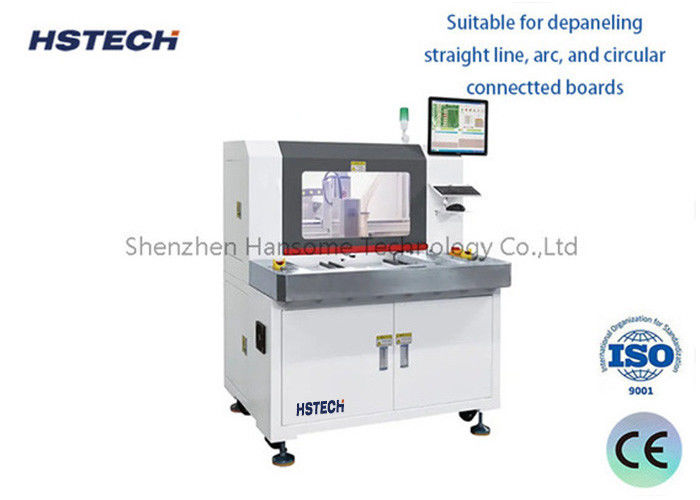

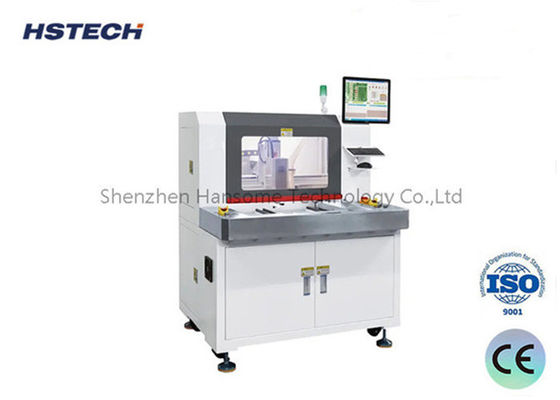

The RM-F550 is a state-of-the-art router machine specifically engineered for depaneling whole printed circuit board assemblies (PCBA) into individual boards. It features an exceptionally stable platform to guarantee precision during operation, with a standard working platform size of 300*350mm.
For larger projects, the machine offers an optional platform size of 400*600mm. The RM-F550 boasts user-friendly "visual" programming capabilities, enabling rapid and accurate online setup, while also providing real-time monitoring of the depaneling process.
Sepcfication
| Model | RM-F328 | ||
| Structure | Single Spindle,double platform | ||
| Efficienty cutting length | 300*350mm | ||
| Cutting types | Straight line, arc, circular | ||
| Moving speed | X/Y axis 1000mm/s,Z axis 500mm/s | ||
| Dust Collection method | Upper collection | ||
| Spindle | 40000~60000rpm | ||
| Routing Spindle | Max60000rpm | ||
| Cutting speed | 1-100mm/s adjustment | ||
| Cutting accuracy | ±0.03mm | ||
| Repeat accuracy | ±0.01mm | ||
| Programming | colorful CCD | ||
| External connect | USB | ||
| Router kit | milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel | ||
| Power supply | 380V | ||
| Machine power | 2000W | ||
| Dust collector size | 600*470*730mm | ||
| Dust collector power | 2.2Kw,380V | ||
| Dust collector air pressure | 4-6KG/cm³ | ||
| Security door | Manual door | ||
| Error alarm | Yes | ||
| Program method | Self programing,camera controlled by keyboard and mouser | ||
