| Brand Name: | HSTECH |
| Model Number: | VM-400 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
Experience Precision Cutting with Our Top-of-the-Line PCB Router Machine
Introduce
The PCB Router Machine stands as a highly utilized instrument in the realm of printed circuit board (PCB) cutting and separation. Here is an exhaustive overview of its features and capabilities:
Designed specifically for meticulous cutting and efficient detachment of PCBs, the PCB Router Machine incorporates state-of-the-art technologies to ensure precise and reliable outcomes across various manufacturing settings. Its robust build, combined with an intuitive control system, allows for smooth integration into production lines, ultimately enhancing overall productivity and quality.
Equipment Composition: The PCB Router comprises a frame, workbench, cutting tools, control & monitoring system, and motion control system. The frame supports the structure, the workbench holds PCBs, tools cut, the control system sets parameters & monitors, and the motion system directs tool movements.
Automated Cutting: With preset cutting paths, speeds, depths, etc., the PCB Router automates tasks, minimizing manual input and enhancing productivity & accuracy.
Versatile Cutting Methods: Adapts to linear, V-shaped, circular, and other cutting techniques to cater to various PCB designs.
Precision Cutting: Employs precise tools and technology for accurate cutting, adhering to preset paths & specifications, ensuring quality consistency.
Deburring Capability: Post-cutting, it deburrs edges, removing burrs, residues, enhancing board quality & appearance.
Efficiency & Cost-Effectiveness: Automated operation & precision cutting expedite production, minimizing human resources & time, reducing waste & damage, translating to cost savings.
Specification
| Model | VM-400 | VM-600 | ||||||
| Machine Dimension | 420x520x860mm | 620x720x1060mm | ||||||
| Voltage | 220V 50/60Hz | 220V 50/60Hz | ||||||
| Max Cutting Length | 400mm | 600mm | ||||||
| PCB Thickness | 0.8~3mm | 0.8~3mm | ||||||
| Separation speed | 600mm/second | 600mm/second | ||||||
| Separation type | Circular blade/linear blade | Circular blade/linear blade | ||||||
| Components height | 0~70mm | 0~70mm | ||||||
| Working temperature | 30~55℃ | 30~55℃ | ||||||
| Weight | 50kg | 60kg |
Features
Advanced High-Speed Cutting Capability: The PCB Router Machine excels in swift cutting, providing economic benefits for bulk production runs, regardless of quantity.
Touchscreen-Enabled Precise Alignment: By employing a touchscreen interface for adjusting the cutting distance, the machine ensures pinpoint alignment with V-slots on PCBs, delivering accurate and flawless cutting strokes.
Stress-Reduced Panel Division: The integration of both moving and fixed blades during panel splitting significantly minimizes stress on PCBs, preventing welding point fractures and preserving structural integrity.
Static PCB, Mobile Blade Operation: During the splitting process, the PCB remains stationary while the blade moves, guaranteeing consistent quality and precision in every cut.
Elevated Efficiency & Premium Quality: Compared to manual methods, the machine drastically reduces stress on welding points, thereby enhancing both operational efficiency and product quality.
Versatile Cutting Distance Adjustment Range: With a customizable cutting distance range spanning 1 to 100 meters, the machine accommodates a diverse set of customer requirements, enhancing overall operational efficiency.
Flexible Starting Position Configuration: The ability to set the initial cutting position freely optimizes cutting layouts, contributing to the machine's longevity and extended service life.
Counting Functionality for Enhanced Data Management: Equipped with a counting feature, the machine enables comprehensive post-production data analysis and reporting, facilitating improved production oversight and traceability.

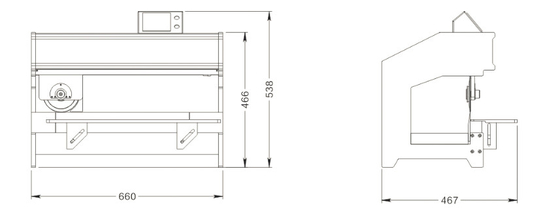

Machine Size
About Packaging
