| Brand Name: | HSTECH |
| Model Number: | AR-7 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |

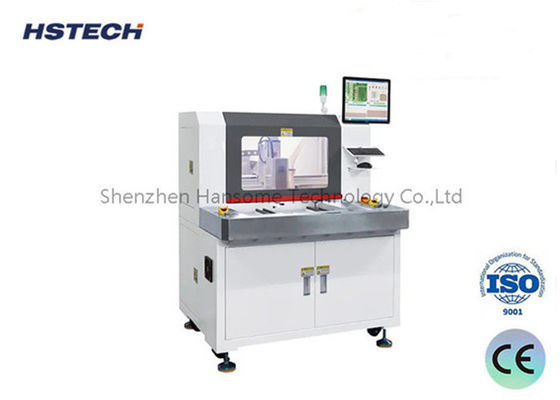

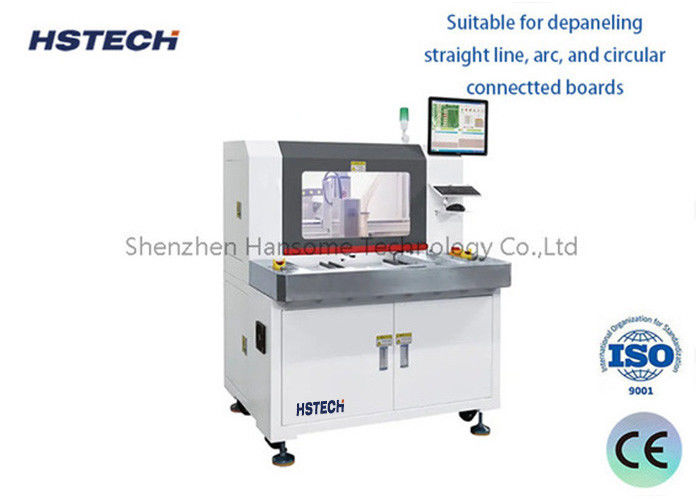

High Speed Mini Offline PCBA Router Machine for Small Size PCB with Flexible Cutting
Introduction:
This specialized routing machine is designed specifically for small-scale or individual PCBA (Printed Circuit Board Assembly) production. Its primary function is to perform precise cutting and segmentation on PCBs with mounted components, ensuring the utmost accuracy. Utilizing advanced CNC (Computer Numerical Control) technology, the machine delivers unparalleled precision and repeatability in its operations.
Features:
1.Offline Automatic Separation: Operating independently, this system ensures seamless and efficient automatic PCB separation, optimizing workflow and minimizing downtime.
2.Mini PCBA Router: Perfect for small-sized PCBs, this compact router fits into tight factory spaces and offers cost-effective, space-saving production solutions.
3.Customizable Fixtures: Equipped with customizable fixtures, the machine ensures compatibility and stability for a wide range of PCB designs and sizes, facilitating precise processing.
4.Integrated PC & CCD Visual System: Enhanced with a high-precision PC-controlled system and a CCD visual system, this router enables precise alignment and monitoring of the cutting process, guaranteeing exceptional accuracy.
5.Programmable with Compensation & Dust Collection: Featuring advanced programming capabilities with compensation functions, the router adjusts for minor inaccuracies and maintains optimal performance. The integrated dust collection system keeps the work area clean and debris-free.
6.Capacity for Large PCBs: Designed to handle PCBs up to 410-510mm in size, this router offers versatility and scalability to meet various production needs.
7.Multi-Product Cutting Capability: Its versatility allows for cutting two different types of products on the same machine, enhancing efficiency and reducing the need for specialized machinery.
8.Open Platform for Flexible Operations: The router's open platform design simplifies manual feeding and unloading. Optionally, it can be equipped with a mechanical arm for fully automated loading and unloading, boosting productivity and reducing labor costs.
Specification:
| Model | AR-7 | AR-7 mini |
| Power supply | AC380V, 50/60Hz, 3KW | |
| Working size | 50x50~410x460mm(max) | 50x50~260x310mm(max) |
| Loading mode | Manual | |
| Cutting spindel/speed | 5000~60,000 rpm | |
| PCB thickness | 0.4-4mm | |
| Separating speed | 1-100mm/s | |
| Cutting accuracy | ±0.05mm | |
| Fixing type | Fixtures | |
| Programing | Visioin teaching, inline programing | |
| Milling kit | φ0.8~φ3.0 right side ratation, shank Tungsten steel | |
| Dust collection method | Bottom dust collection | |
| Dust collector | 3 phase, 380V, 1.2KW | |
| Noise | <75dB | |
| Control system | Industrial PC | |
| Spindle brand | Germany brand, Sycotec 4025 | |
| Servo motor | A5 series | |
| Motion control | 4 axis motion control board | |
| Lead screw | C5 grinding screw lead | |
| Linear guide | P rank silence guide | |
| Camera | Germany brand Imaging 40W industril camera | |
| Machine size | 700*800*930 mm | 500*650*930mm |
| Screen |
17inch
|
|
Typical application scenarios:
Personal or small electronic DIY production, such as making your own PCB circuit board.
Small batch PCBA production, suitable for rapid prototyping and small batch trial production.
Cutting and splitting PCB when repairing or modifying electronic products.
Teaching laboratory, let students understand PCBA processing technology.
