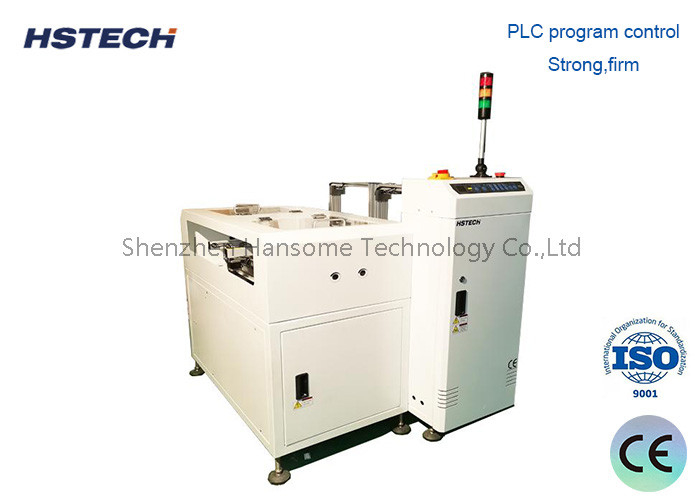

SMT Production Line Good / No-good board Separating Magazine NG OK PCB Unloader
Intorduction
After the Automated Optical Inspection (AOI) process, this unit efficiently operates by receiving the inspection signal from the previous stage. It automatically segregates the PCBs into two categories—non-conforming (NG) and conforming (OK)—and routes them into their designated magazines. This guarantees a highly efficient and organized sorting of the printed circuit boards.
Technical details
| Function | Collect the NG/OK boards separately by receiving the signal. |
| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Board collect time | Each approx 6 seconds |
| Magazine change over time | Approx 30seconds |
| Track fixed side | Front side |
| Operation side | Front side |
| Conveyor belt | ESD |
| PCB thickness | Min 0.6mm |
| Pitch selection | 1-4(10mm pitch) |
| Power supply | 220V,50/60Hz,±10% |
| Power | 0.05kW |
| Air pressure | 4-6Bar |
| Air consumption | Max 15L/min |
| Number of magazines | Upper:1 magazine, Bottom side:2 magazines |
| Signal | SMEMA |
| Options |
1, Touch screen control mode. 2, Automatic width adjustment. 3, Magazines quantity up to customer requirement. |
Features
1.PLC Control:
The system is equipped with a PLC for accurate and dependable operation.
2.User-Friendly Interface:
Features a soft-touch LED membrane panel for easy and intuitive control.
3.Adjustable Pitch:
Designed to accommodate a range of PCB sizes and configurations.
4.Toggle Clamps:
Ensure secure magazine alignment for stable placement of boards.
5.Pneumatic Pusher:
Pressure-regulated to ensure gentle and damage-free transfer of boards.
6.High Throughput:
Rapid magazine changeover maximizes overall production efficiency.
7.Auto NG/OK Sorting:
Seamlessly integrates with AOI for streamlined inspection and sorting processes.
8.SMEMA Standard Communications Interface:
Facilitates seamless integration into production lines via SMEMA protocol, enabling smooth communication and data exchange.
Model
| Model | HS-NK250 | HS-NK330 | HS-NK390 | HS-NK460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| PCB thickness | Min 0.6mm | Min 0.6mm | Min 0.6mm | Min 0.6mm |
| Magazine size | 355*320*563mm | 460*400*563 | 535*460*570mm | 535*530*570mm |
| Machine dimension | 1950*1600*1200mm | 2300*1760*1200mm | 2500*1880*1200mm | 2500*2160*1200mm |
| Weight | 220kg | 280kg | 340kg | 380kg |
