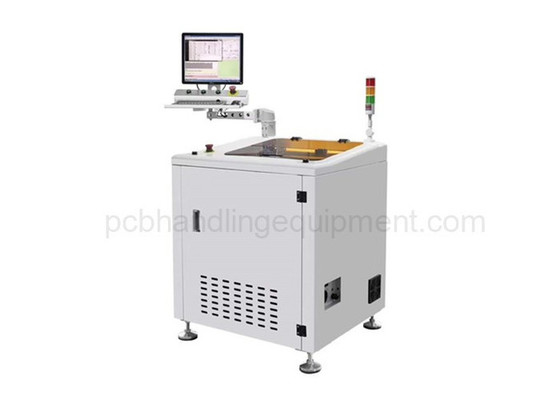

High Speed Mini Offline PCBA Router Machine for Small Size PCB with Flexible Cutting
Introduction:
This equipment represents a specialized routing machine, tailor-made for small-scale or individual PCBA (Printed Circuit Board Assembly) production. Its core purpose is to carry out precise cutting and segmentation tasks on PCBs that already have components mounted, ensuring the highest level of accuracy. By harnessing advanced CNC (Computer Numerical Control) technology, the machine achieves unmatched precision and repeatability in its operations.
Features:
Offline Automatic Separation: The system operates independently, allowing for seamless and efficient automatic separation of PCBs, optimizing workflow and minimizing downtime.
Mini PCBA Router: Ideal for handling small-sized PCBs, this compact router not only fits into tight factory spaces but also contributes to cost-effective and space-saving production solutions.
Customized Fixtures: The machine is equipped with customizable fixtures, ensuring compatibility and stability for a wide range of PCB designs and sizes, facilitating accurate processing.

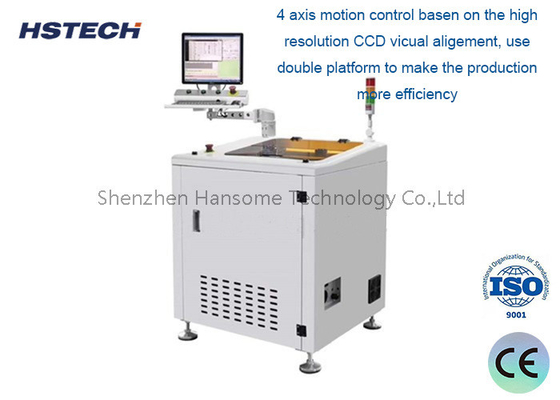

Integrated PC & CCD Visual System: Enhanced with a high-precision PC-controlled system and a CCD (Charge-Coupled Device) visual system, it enables precise alignment and monitoring of the cutting process, guaranteeing outstanding accuracy.
Programmable with Compensation & Dust Collection: Featuring advanced programming capabilities with built-in compensation functions, it adjusts for minor inaccuracies and maintains peak performance. Additionally, the integrated dust collection system keeps the work area clean and free from debris.
Capacity for Max 410-510mm PCBA: Designed to handle PCBs up to 410-510mm in size, this router ensures versatility and scalability for various production needs.
Flexible Multi-Product Cutting: Its versatility allows for the cutting of two different types of products on the same machine, increasing efficiency and reducing the need for multiple specialized machines.
Open Platform for Manual or Automated Operations: The router features an open platform design that simplifies manual feeding and unloading operations. Furthermore, it can be optionally equipped with a mechanical arm (robot) for fully automated loading and unloading, enhancing productivity and reducing labor costs.
Specification:
| Model | AR-7 | AR-7 mini |
| Power supply | AC380V, 50/60Hz, 3KW | |
| Working size | 50x50~410x460mm(max) | 50x50~260x310mm(max) |
| Loading mode | Manual | |
| Cutting spindel/speed | 5000~60,000 rpm | |
| PCB thickness | 0.4-4mm | |
| Separating speed | 1-100mm/s | |
| Cutting accuracy | ±0.05mm | |
| Fixing type | Fixtures | |
| Programing | Visioin teaching, inline programing | |
| Milling kit | φ0.8~φ3.0 right side ratation, shank Tungsten steel | |
| Dust collection method | Bottom dust collection | |
| Dust collector | 3 phase, 380V, 1.2KW | |
| Noise | <75dB | |
| Control system | Industrial PC | |
| Spindle brand | Germany brand, Sycotec 4025 | |
| Servo motor | A5 series | |
| Motion control | 4 axis motion control board | |
| Lead screw | C5 grinding screw lead | |
| Linear guide | P rank silence guide | |
| Camera | Germany brand Imaging 40W industril camera | |
| Machine size | 700*800*930 mm | 500*650*930mm |
| Screen |
17inch
|
|
Typical application scenarios:
Personal or small electronic DIY production, such as making your own PCB circuit board.
Small batch PCBA production, suitable for rapid prototyping and small batch trial production.
Cutting and splitting PCB when repairing or modifying electronic products.
Teaching laboratory, let students understand PCBA processing technology.
