| Brand Name: | HSTECH |
| Model Number: | RM-F550 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
Introduction

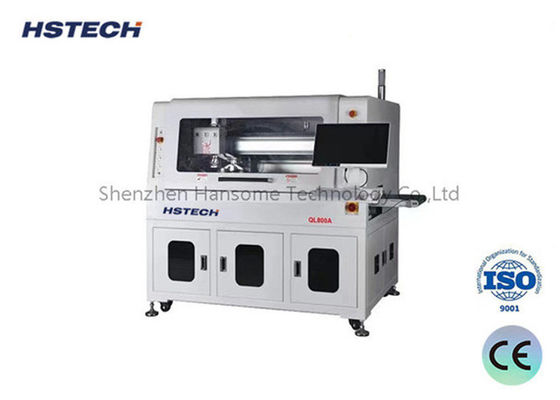

This inline automatic PCBA routing machine is engineered with precision and efficiency in mind. It utilizes a jig-based system to securely hold the PCBA during the automated bottom-side routing process. Once routing is completed, the machine employs an advanced nozzle suction mechanism to delicately lift and precisely position both the PCBA and the jig as a unified entity. This groundbreaking feature allows the machine to skillfully separate stamp holes, curved PCBs, and other irregularly connected PCB configurations, thereby optimizing production workflows and boosting overall productivity.
Features

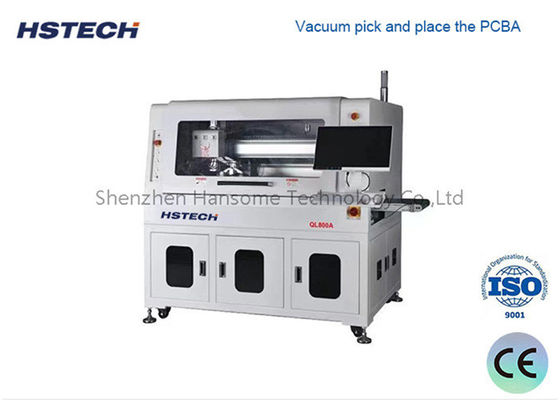

The PCBA is precisely picked and placed using a vacuum-based system, ensuring accurate and secure handling.
The machine performs bottom cutting operations with precision, tailored to the specific requirements of the PCBA.
It boasts a dual-platform cutting capability, enhancing productivity by allowing for simultaneous or alternating cutting processes.
Integrated broken knife detection ensures immediate recognition of any issues, facilitating prompt maintenance and minimizing downtime.
The machine seamlessly connects to automatic production lines, facilitating a smooth and efficient workflow from start to finish.
Equipped with SPC (Statistical Process Control) statistics functionality, it integrates seamlessly with ERP systems, providing valuable insights into production performance and facilitating data-driven decision-making.
Optional features include automatic tool change for added versatility, an explosion-proof vacuum cleaner for enhanced safety, and air volume monitoring to maintain optimal suction performance.
Technical details
| Model | QL800A | |
| Max PCB size | 260x340mm | |
| Min PCB size | 50x50mm | |
| PCB thickness | 0.4-6mm | |
| Transmission height | 900±50mm | |
| Transport direction | Left to right | |
| Transportation speed | 1500mm/s(max) Adjustable | |
| Loading mode | Section-type transportation guide rail | |
| Rail width adjustment | Automatic | |
| Communication interface | SMEMA | |
| PCB positioning | Fixtures positioning | |
| Picking system | Vacuum suction pick up | |
| Cutting spindle/speed | 60,000 rpm/min, Germany brand(optional 100,000 rpm/min, Germany brand) | |
| Cooling type | Self cooled type | |
| Automatic tool change | optional | |
| Break knife check | Yes | |
| Separating speed | 5-100mm/s | |
| Cutting accuracy | ±0.05mm | |
| Milling kit | φ0.8~φ3.0 right side rotation, shank Tungsten steel | |
| Repeat positioning accuracy | ±0.1mm | |
| Coordinate moving speed | 1000mm/s | |
| Out plate type | ESD belt transportation / batch panel forwarding unit | |
| Waste collection | Waste cupboard collection | |
| Procedure programming | GERBER drawing import /editing program through visual system | |
| Air supply | 5-8 kg/cm³ | |
| Power supply | AC380V, 50/60Hz, 3KW | |
| Machine size | 1500x850x1600 mm | |
| Weight | Appro. 800kg | |
Machine size
Bottom size routing and dust collector
Excellent CCD system with imaging camera, moritex lens and measurement - level light source, to support machine calibration,compensation and positioning, with great stability and anti-disturbance capacity.
Omnipotence vacuum suction chuck for picking, placing , unloading, and production.
Composite unloading system, used the ESD anti-static belt to transport the separated product on the top side, and the waster is transported on the bottom side, save much space by this method.
