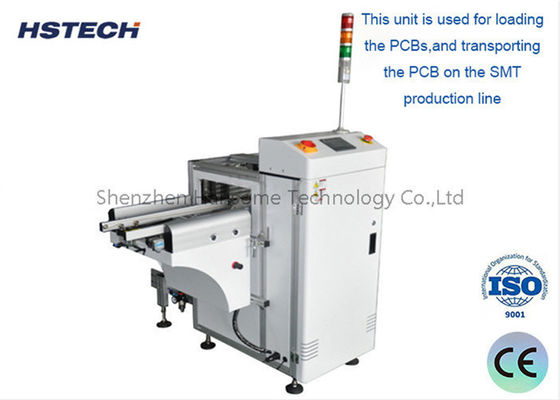

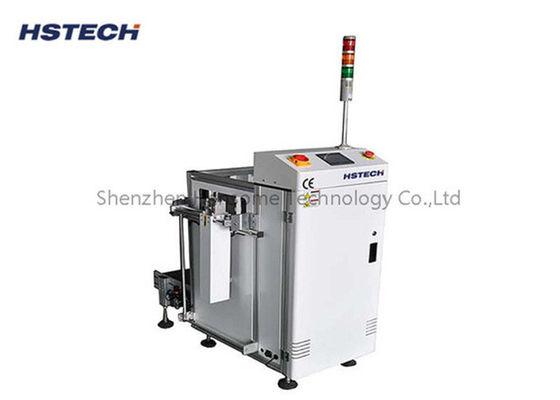

Precision 90 Degree PCB Loader With Customizable Conveyor Speed For SMT Production

90 Degree PCB Loader with Customizable Conveyor Speed for SMT Production

Application

The board loading machine serves as a cornerstone in SMT production lines, automating the PCB board loading process to enhance productivity and maintain consistent quality standards. Widely embraced by the electronic manufacturing sector, it is indispensable for facilitating seamless and efficient production workflows.

Specification

Features

1. Boasting a specialized aluminum profile guide rail and an exclusive Houndstooth plastic chain, this machine guarantees precision and longevity, ensuring reliability in the long run.
2. Powered by a robust 90W brake motor, it employs a ball screw mechanism for seamless and precise magazine movements, enabling smooth ascents and descents.
3. The machine incorporates a sturdy pneumatic clamping structure that firmly secures the board in place, maintaining operational stability throughout the process.
4. Standard with 3 magazines – 1 at the top and 2 at the bottom – it optimizes workflow and enhances overall production efficiency.
5. Offering versatility in movement direction, it supports both right-to-left and left-to-right configurations, catering to diverse production layouts.
6. With customizable pitch options for the lifting platform, including 10, 20, 30, or 40, it ensures precise alignment and adaptability to different production requirements.
7. Controlled by a dependable PLC (Programmable Logic Controller), the machine provides robust automation capabilities and programming flexibility to meet a wide range of production needs.
8. Equipped with an automatic loading function, it streamlines the production process, minimizing manual intervention and maximizing productivity.
9. The pneumatic components feature adjustable push plate cylinder positions, facilitated by a precision screw, enabling fine-tuning and precise positioning for optimal performance.

About Detail

About Packaging

Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer. We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of SMT/THT production line board handling equipment.
We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same timeour experienced engineering team always grasps smart factory's developing direction,updates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
