PCB Router Machine - CCD Visual Aligement, Hiwin Guide, Tool Life Monitor, 0.5-3mm Cutting
Machine introduction

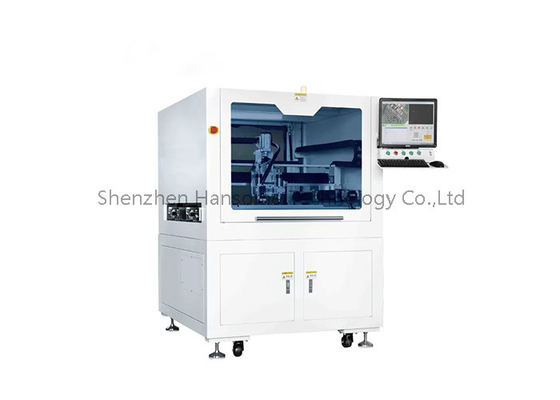

The RM-F550 Router Machine stands as a pinnacle of PCBA precision depaneling technology, adeptly dissecting complex assemblies into individual boards with unparalleled precision. Boasting a sturdy foundation, it accommodates a standard workspace of 300*350mm, effortlessly managing a diverse spectrum of PCBA sizes.
For those seeking to expand their production horizons, the RM-F550 offers an optional 400*600mm extended platform, a testament to its unparalleled adaptability and capability to fulfill a broader range of manufacturing demands. Introducing a paradigm shift in programming, this machine harnesses intuitive "visual" capabilities, transforming the online setup process into a swift and error-proof endeavor. This innovative feature not only expedites operations but also fosters real-time process monitoring, guaranteeing consistently outstanding results throughout the depaneling cycle.
Main features
We pride ourselves in offering premium industrial equipment that stands out in terms of performance, stability, and security. This is achieved by seamlessly integrating high-precision linear guides, cutting-edge control cards, and dependable servo motors, ensuring exceptional quality and reliability in every aspect.
Harnessing the power of high-resolution CCD visual alignment technology, our 4-axis motion control system leverages a dual-platform design to maximize production efficiency. This setup fosters seamless transitions and uninterrupted operation, streamlining the entire process.
Boasting a German-crafted routing spindle, the machine operates within an impressive rotational speed range of 40,000 to 60,000 RPM, guaranteeing precision and efficiency in every cut.
For unparalleled precision and smooth motion, we rely on Taiwan Hiwin brand guides. These premium components ensure a flawless and reliable moving system, enhancing the overall performance of our equipment.
Introducing tool life monitoring, a smart feature that intelligently adjusts the cutter position upon traversing a predetermined distance. This innovative system ensures uninterrupted operation by seamlessly switching to an uncut blade, minimizing downtime and maximizing productivity.
Versatility at its finest, our machine adeptly handles depaneling of PCBs with straight, arc, and circular connections, catering to a diverse range of production needs.

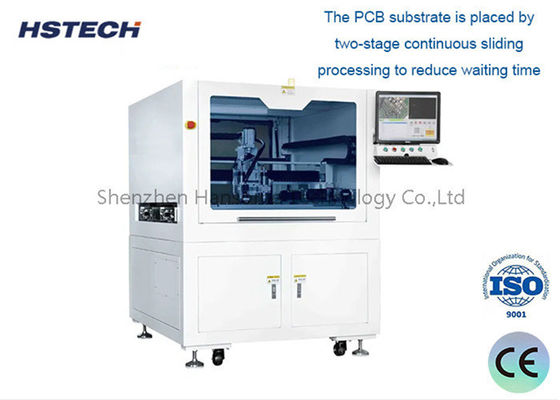

To further refine production flow, we incorporate a two-stage continuous sliding system for PCB substrate processing. This innovative design minimizes waiting time and maximizes throughput, fostering a more efficient and productive workflow from start to finish.
Sepcfication
| Model | RM-F328 | ||
| Structure | Single Spindle,double platform | ||
| Efficienty cutting length | 300*350mm | ||
| Cutting types | Straight line, arc, circular | ||
| Moving speed | X/Y axis 1000mm/s,Z axis 500mm/s | ||
| Dust Collection method | Upper collection | ||
| Spindle | 40000~60000rpm | ||
| Routing Spindle | Max60000rpm | ||
| Cutting speed | 1-100mm/s adjustment | ||
| Cutting accuracy | ±0.03mm | ||
| Repeat accuracy | ±0.01mm | ||
| Programming | colorful CCD | ||
| External connect | USB | ||
| Router kit | milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel | ||
| Power supply | 380V | ||
| Machine power | 2000W | ||
| Dust collector size | 600*470*730mm | ||
| Dust collector power | 2.2Kw,380V | ||
| Dust collector air pressure | 4-6KG/cm³ | ||
| Security door | Manual door | ||
| Error alarm | Yes | ||
| Program method | Self programing,camera controlled by keyboard and mouser | ||
