Introduction

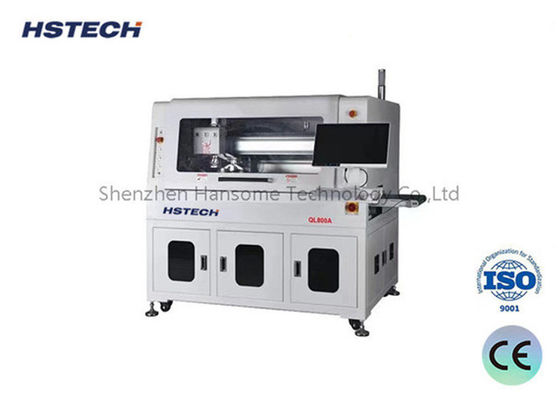

This is an inline automated PCBA routing machine designed for precision and efficiency. The PCBA is securely mounted on a jig for automatic routing on the bottom side. Upon completion of the routing process, the machine employs a nozzle suction system to seamlessly pick up and place both the PCBA and its jig together. This versatile machine is specifically tailored for separating PCBs with stamp holes, curved designs, and other irregular connections, making it an invaluable tool for streamlining production and ensuring precise separation of complex PCB assemblies.
Features

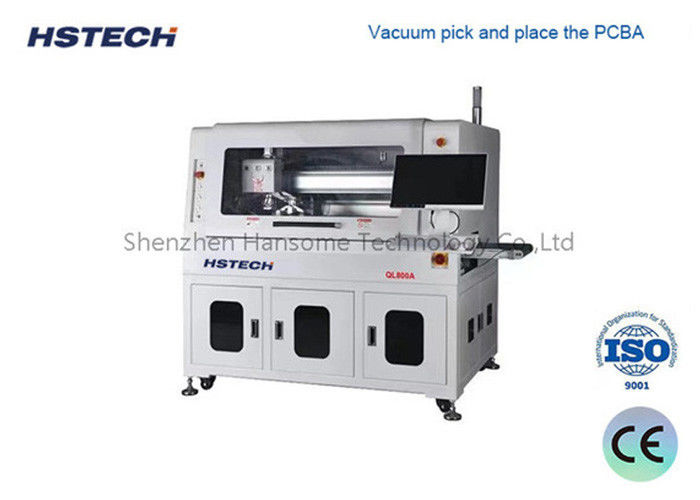

Features a vacuum-based pick-and-place system for precise and secure handling of PCBAs.
Performs bottom cutting operations with exceptional precision and efficiency.
Incorporates a dual-platform design to enhance productivity and reduce downtime during cutting processes.
Equipped with broken knife detection, ensuring prompt notification and minimizing production disruptions.
Seamlessly integrates with automatic production lines, streamlining workflow and maximizing overall production capacity.
Offers SPC statistics functionality, allowing for data analysis and integration with ERP systems for optimized inventory management and production planning.
Optional upgrades include an automatic tool change system, explosion-proof vacuum cleaner functionality, and air volume monitoring, enhancing safety, reliability, and performance.
Technical details
| Model | QL800A | |
| Max PCB size | 260x340mm | |
| Min PCB size | 50x50mm | |
| PCB thickness | 0.4-6mm | |
| Transmission height | 900±50mm | |
| Transport direction | Left to right | |
| Transportation speed | 1500mm/s(max) Adjustable | |
| Loading mode | Section-type transportation guide rail | |
| Rail width adjustment | Automatic | |
| Communication interface | SMEMA | |
| PCB positioning | Fixtures positioning | |
| Picking system | Vacuum suction pick up | |
| Cutting spindle/speed | 60,000 rpm/min, Germany brand(optional 100,000 rpm/min, Germany brand) | |
| Cooling type | Self cooled type | |
| Automatic tool change | optional | |
| Break knife check | Yes | |
| Separating speed | 5-100mm/s | |
| Cutting accuracy | ±0.05mm | |
| Milling kit | φ0.8~φ3.0 right side rotation, shank Tungsten steel | |
| Repeat positioning accuracy | ±0.1mm | |
| Coordinate moving speed | 1000mm/s | |
| Out plate type | ESD belt transportation / batch panel forwarding unit | |
| Waste collection | Waste cupboard collection | |
| Procedure programming | GERBER drawing import /editing program through visual system | |
| Air supply | 5-8 kg/cm³ | |
| Power supply | AC380V, 50/60Hz, 3KW | |
| Machine size | 1500x850x1600 mm | |
| Weight | Appro. 800kg | |
Machine size
Bottom size routing and dust collector
Excellent CCD system with imaging camera, moritex lens and measurement - level light source, to support machine calibration,compensation and positioning, with great stability and anti-disturbance capacity.
Omnipotence vacuum suction chuck for picking, placing , unloading, and production.
Composite unloading system, used the ESD anti-static belt to transport the separated product on the top side, and the waster is transported on the bottom side, save much space by this method.
