| Brand Name: | HSTECH |
| Model Number: | RM-F550 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
High Speed Curve PCB Cutting Machine SMT Cutter For PCB Production Line
Machine introduction
The RM-F550 is a cutting-edge Router Machine, specifically designed for efficiently depaneling entire printed circuit board assemblies (PCBA) into individual boards. This innovative machine boasts a highly stable platform, measuring 300*350mm, to guarantee unparalleled precision during operation.
For users requiring even greater versatility, an expanded platform option of 400*600mm is also available. The RM-F550 further simplifies the programming process with its intuitive "visual" programming interface, enabling swift and precise online configurations. Additionally, it incorporates advanced monitoring capabilities, allowing for real-time detection and oversight of the depaneling process.
Main features

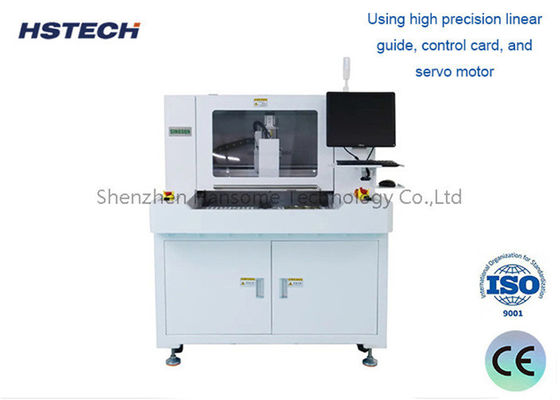

We offer customers a top-tier industrial equipment that combines high performance, stability, and security. This is achieved through the utilization of precision linear guides, advanced control cards, and reliable servo motors.
Enhancing productivity, our machine features 4-axis motion control based on high-resolution CCD visual alignment, complemented by a dual-platform design that streamlines production processes for maximum efficiency.
Equipped with a German-brand routing spindle capable of speeds ranging from 40,000 to 60,000 rpm, our machine ensures swift and precise cutting for various applications.
For unparalleled precision and smooth motion, we incorporate Taiwan Hiwin brand guides into our moving systems, ensuring that every operation is executed with the utmost accuracy.
Incorporating tool life monitoring, our machine automatically adjusts the cutter's position once it has traversed a predetermined distance, seamlessly switching to an unused blade, thereby optimizing tool utilization and extending overall lifespan.
Versatile in its capabilities, the machine is adept at depaneling boards with straight, arc, and circular connections, catering to a wide range of manufacturing requirements.

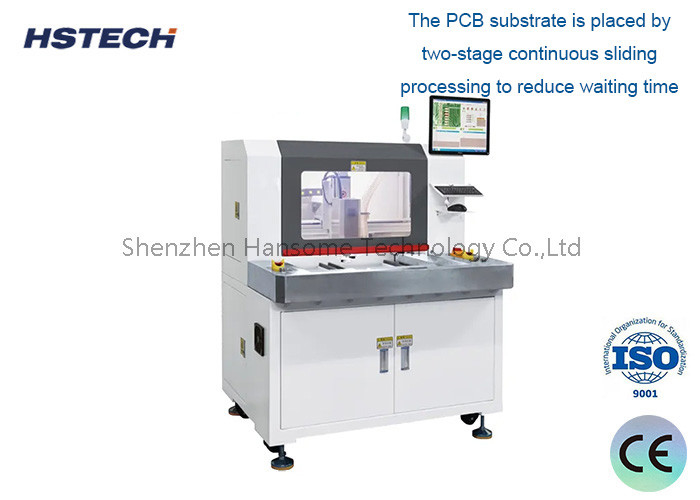

To minimize waiting time and maximize output, the PCB substrate undergoes a two-stage continuous sliding processing, ensuring seamless transitions between operations and enhanced production efficiency.
Sepcfication
| Model | RM-F328 | ||
| Structure | Single Spindle,double platform | ||
| Efficienty cutting length | 300*350mm | ||
| Cutting types | Straight line, arc, circular | ||
| Moving speed | X/Y axis 1000mm/s,Z axis 500mm/s | ||
| Dust Collection method | Upper collection | ||
| Spindle | 40000~60000rpm | ||
| Routing Spindle | Max60000rpm | ||
| Cutting speed | 1-100mm/s adjustment | ||
| Cutting accuracy | ±0.03mm | ||
| Repeat accuracy | ±0.01mm | ||
| Programming | colorful CCD | ||
| External connect | USB | ||
| Router kit | milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel | ||
| Power supply | 380V | ||
| Machine power | 2000W | ||
| Dust collector size | 600*470*730mm | ||
| Dust collector power | 2.2Kw,380V | ||
| Dust collector air pressure | 4-6KG/cm³ | ||
| Security door | Manual door | ||
| Error alarm | Yes | ||
| Program method | Self programing,camera controlled by keyboard and mouser | ||
