| Brand Name: | HSTECH |
| Model Number: | HS-NK250 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

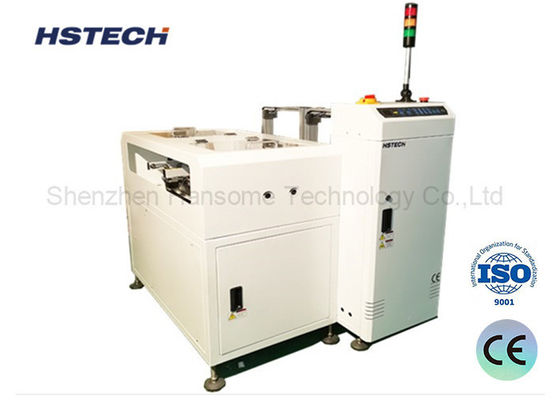

SMT Production Line Good / No-good board Separating Magazine NG OK PCB Unloader
Intorduction
This unit is employed downstream of the AOI process. Upon receiving the upstream AOI inspection signal, it automatically segregates the non-conforming (NG) and conforming (OK) boards into their respective designated magazines, ensuring efficient and organized sorting of the PCBs.
Technical details
| Function | Collect the NG/OK boards separately by receiving the signal. |
| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Board collect time | Each approx 6 seconds |
| Magazine change over time | Approx 30seconds |
| Track fixed side | Front side |
| Operation side | Front side |
| Conveyor belt | ESD |
| PCB thickness | Min 0.6mm |
| Pitch selection | 1-4(10mm pitch) |
| Power supply | 220V,50/60Hz,±10% |
| Power | 0.05kW |
| Air pressure | 4-6Bar |
| Air consumption | Max 15L/min |
| Number of magazines | Upper:1 magazine, Bottom side:2 magazines |
| Signal | SMEMA |
| Options |
1, Touch screen control mode. 2, Automatic width adjustment. 3, Magazines quantity up to customer requirement.
|
Features
PLC Programming Control: The unit is equipped with a PLC (Programmable Logic Controller) for precise and reliable programming control, ensuring smooth and efficient operation.
User-Friendly LED Membrane Control Panel: Featuring a 'soft touch' LED membrane control panel, the interface is intuitive and easy to navigate, providing a seamless user experience.
Adjustable Pitch Setting: The unit offers selectable pitch settings, allowing for flexibility in accommodating different PCB sizes and configurations.
Toggle Level Clamps for Magazine Alignment: Equipped with toggle level clamps, the magazines can be easily aligned and secured, ensuring accurate and stable board placement.
Pneumatic Pusher with Pressure Regulation: The pneumatic pusher is designed with pressure regulation, enabling precise control over the force applied during board transfer, minimizing the risk of damage.
High Throughput with Rapid Magazine Changeover: The unit boasts high throughput capabilities, complemented by a short magazine changeover time, maximizing production efficiency.
Automatic NG/OK Board Sorting from AOI: Seamlessly integrating with AOI systems, the unit automatically collects and stores non-conforming (NG) and conforming (OK) boards in separate magazines, streamlining the inspection and sorting process.
Standard SMEMA Communication Interface: Equipped with a standard SMEMA (Surface Mount Equipment Manufacturers Association) communication interface, the unit can easily integrate into existing production lines, facilitating seamless communication and data exchange.
Model
| Model | HS-NK250 | HS-NK330 | HS-NK390 | HS-NK460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| PCB thickness | Min 0.6mm | Min 0.6mm | Min 0.6mm | Min 0.6mm |
| Magazine size | 355*320*563mm | 460*400*563 | 535*460*570mm | 535*530*570mm |
| Machine dimension | 1950*1600*1200mm | 2300*1760*1200mm | 2500*1880*1200mm | 2500*2160*1200mm |
| Weight | 220kg | 280kg | 340kg | 380kg |

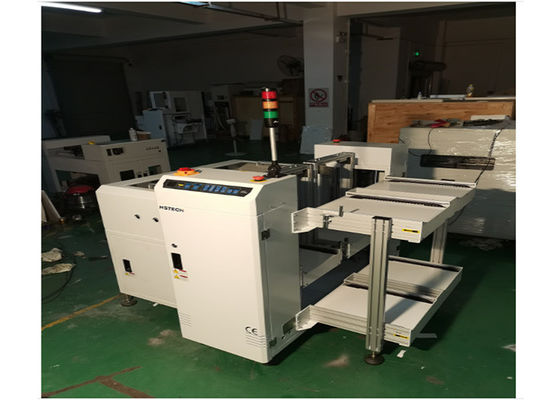

The Product and Details
