High Quantity 4 Axis Motion Control Offline PCBA Router Machine For PCB Assembly Line
Introduction:
This machine RM-F550 is a new developed Router Machine. It is used to depaneling a whole printed circuit board assemblies (PCBA) into individual PCBa boards. The machine adopt a very stable platform to ensure the working precision, the working platform size is 300*350mm.
It has a larger platform option at 400*600mm.The machine provides user friendly "visual" programming for rapid and accurate online programming,also can detect the depaneling process.
Main features:

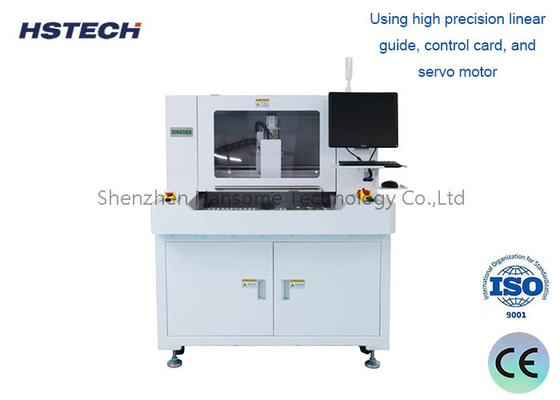

1, Provide customers a high performance,high stable and security industrial equipment, using high precision linear guide, control card, and servo motor.
2, 4 axis motion control basen on the high resolution CCD vicual aligement, use double platform to make the production more efficiency.
3, Germany brand routing spindle, speed at 40000~60000rpm.
4, Taiwan Hiwin brand guide, make sure the moving system precision and smooth.
5, Tool life monitoring. After the cutter cuts a certain distance, it will automatically rise and fall to the position of another uncut blade.
6, Suitable for depaneling straight line, arc, and circular connectted boards.

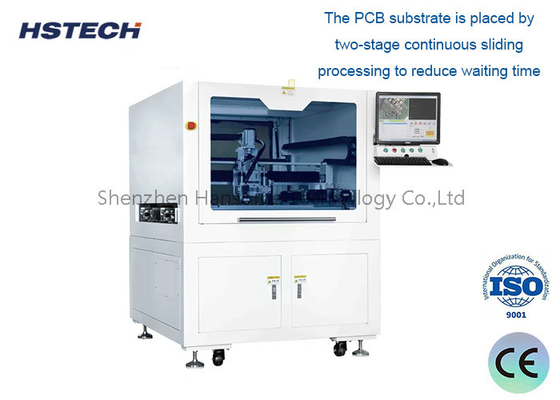

7, The PCB substrate is placed by two-stage continuous sliding processing to reduce waiting time and increase production.
Key Features
Precision Cutting
Designed to accurately cut and separate individual PCBs from larger panels with minimal damage.
Offline Operation
Operates independently of the main production line, allowing for flexible setup and use without interrupting ongoing processes.
User-Friendly Interface
Often equipped with a touchscreen interface for easy programming and operation.
Multiple Cutting Techniques
Supports various cutting methods, such as routing, laser cutting, or knife cutting, depending on the machine.
Dust Extraction System
Integrated systems to minimize dust and debris during the cutting process, ensuring a clean working environment.
Material Compatibility
Capable of handling different materials, including FR-4, aluminum, and flexible PCBs.
Automated Features
Some models include features like automatic height adjustment and tool changes to enhance efficiency.
Benefits
Increased Efficiency
Reduces manual labor and speeds up the production process by automating PCB cutting.
Quality Control
Ensures high-quality cuts that reduce the likelihood of defects in the final product.
Flexibility
Allows for quick changes in production runs without requiring extensive reconfiguration of the main assembly line.
Cost-Effective
Helps minimize waste and improves overall production efficiency, which can lead to cost savings.
Applications
Electronics Manufacturing
Widely used in the production of consumer electronics, automotive components, and industrial equipment.
Prototyping
Useful for rapid prototyping of PCBs before full-scale production
Sepcfication:
| Model | RM-F328 | ||
| Structure | Single Spindle,double platform | ||
| Efficienty cutting length | 300*350mm | ||
| Cutting types | Straight line, arc, circular | ||
| Moving speed | X/Y axis 1000mm/s,Z axis 500mm/s | ||
| Dust Collection method | Upper collection | ||
| Spindle | 40000~60000rpm | ||
| Routing Spindle | Max60000rpm | ||
| Cutting speed | 1-100mm/s adjustment | ||
| Cutting accuracy | ±0.03mm | ||
| Repeat accuracy | ±0.01mm | ||
| Programming | colorful CCD | ||
| External connect | USB | ||
| Router kit | milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel | ||
| Power supply | 380V | ||
| Machine power | 2000W | ||
| Dust collector size | 600*470*730mm | ||
| Dust collector power | 2.2Kw,380V | ||
| Dust collector air pressure | 4-6KG/cm³ | ||
| Security door | Manual door | ||
| Error alarm | Yes | ||
| Program method | Self programing,camera controlled by keyboard and mouser | ||
