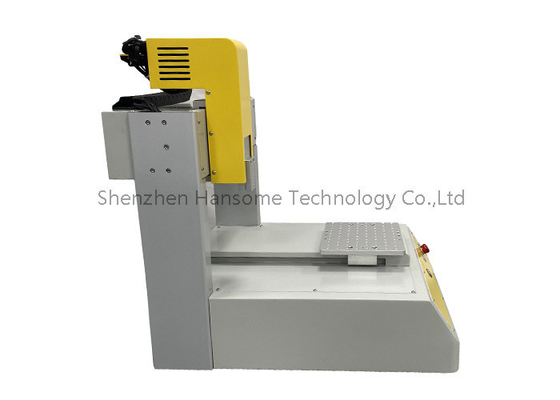

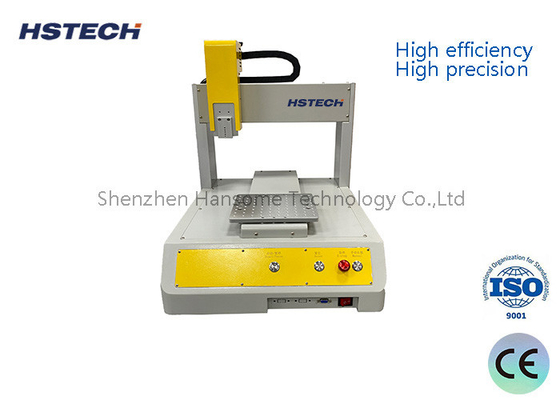

LCD Screen Operation Glue Dispensing Machine Single Platform Small Type For Electronic Assembly
Introduction
The glue dispensing machine is an important equipment used in the electronic manufacturing, automobile manufacturing and other industries. It is used to automatically and accurately apply glue or other fluids on the surface or parts of products.
Single working platform
The machine adopts a single working platform design, and glue dispensing is achieved through a precise X-Y axis control system.
A fixture or positioning device will be installed on the workbench to fix the parts to be coated.
High dispensing accuracy
Equipped with high-precision dispensing valves or pumps, it can achieve milliliter-level dispensing control.
The amount of glue at each dispensing position can be accurately controlled through programming.
Flexible production
The machine can flexibly adjust the dispensing mode according to the size, shape, material, etc. of different products.
It can be matched with automatic detection functions such as visual systems to achieve intelligent production.
High efficiency and repeatability
The high degree of automation greatly improves production efficiency and consistency.
Reduce manual operation, reduce defective product rate and waste.
Easy to maintain
Simple structure, relatively easy maintenance.
It can be flexibly adjusted according to actual production needs.
1. PC computer LCD screen operation, easy to program, easy to learn and understand;
2. It has the functions of drawing points, lines, faces, arcs, circles, and continually tween of irregular curves to realize any 3D non-planar track path;
3. The size of the glue, the speed of the glue, the time of dispensing, and the time of stopping the glu e can all be parameterized;
4. With the special dispensing controller, the glue output is stable, the glue is clean and the glue is not leaked;
5. Quickly dot, draw lines and draw circles in the inner, outer wall, vertical surface, gap and spherical surface of the product;
6. According to the needs of customers, it can be equipped with fixtures, glue guns, controllers, heatingtemperature control devices, etc.
7. Optional 1-4 head dispensing device, multiple glue guns at the same time to double the work efficiency;
8. The software has functions such as regional display, translation rotation operation, etc.
9. Adopt trapezoidal acceleration and deceleration, speed preview, micro line interpolation and other technologies;
10. Configure high-speed, low-noise Japanese stepping motor with precise positioning, quick response,stable performance and long service life.
| Model | HS-D441 |
| Power supply | 110V/220V 50-60Hz 350W |
| Glue Mixing Ratio | 1:1-10:1/Customizable |
| Dispensing Speed | 10-150g/5s(based on 1:1 glue proportion) |
| Dispensing Precision | Glue Amount±1%, Glue Proportion±1% |
| X/Y/Z Working Range | 400*400*100mm(Z axis can be rotated) |
| XYZ Speed | Max 300mm/s |
| Drive System | Stepping Motor + Timing Belt |
| Repeatability | ±0.02mm |
| Pattern | Lines, Circles, Arcs, Continuous Paths, 3D Linear Interpolation |
| Potting Precision | Amount±1%, Ratio:±1% |

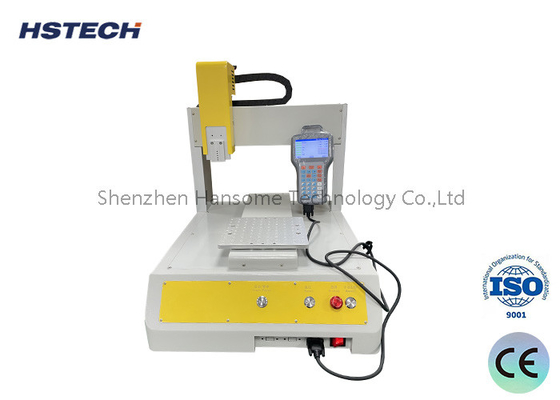

| Programming | Teach Pendant |
| Control | PLC |
| Leak-proof Function | Valve with Vacuum Device |
| Document Support | CAD, CorelDRAW |
| Weight | 30kg |
| Dimension(L*W*H) | 48*64*60CM |
