Multi-Function Cutting Touch Screen PCB Router Machine For Real-Time Monitoring
CB Router Machine:
This machine RM-F500 is a vertical PCB router machine, the machine body including two parts, the bottom part is the structure and the upper part is a tabletop 3 axis moving PCB separating system. The separating system use the teach box for manual programming, so need manual set every mark points, it's a cost effective PCB router system.
Definition and function:
CB milling machine is a special machine tool equipment used to process CB (Circuit Breaker) housing.
The main function is to manufacture circuit breaker housings of various sizes and shapes through precision milling.
Working principle:
CB milling machine consists of a high-speed rotating tool driven by a motor, which can move accurately on the X/Y/Z three axes.
The CB housing blank to be processed is fixed on the workbench, and the tool performs milling according to the pre-programmed path.
Through the precise CNC control system, high-precision automatic processing of complex housing contours is achieved.
Main features:
High processing accuracy: ±0.01mm dimensional accuracy and precision processing of complex contours can be achieved.
Fast processing speed: high degree of automation, significantly improved processing efficiency.
Strong adaptability: processing parameters can be automatically adjusted according to different models of CB housings.
Low noise: sound insulation design is adopted, and the noise is low during operation.
Simple operation: with human-computer interaction interface, easy and fast operation.
Application scenarios:
CB manufacturing: used for automated precision machining of CB shells.
Repair service: repair and remanufacture damaged CB shells.
Scientific research laboratory: used for development and testing of new CB structures and new materials.
Features:

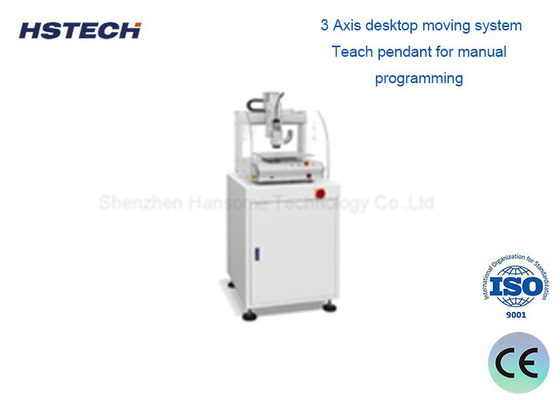

1, 3 Axis desktop moving system.
2, Teach pendant for manual programming.
3, High speed routing spindle, speed at 20000~40000rpm.
4, Taiwan Hiwin brand guide, make sure the moving system precision and smooth.
5, Upper side dust collector method, make sure the platform clean.
6, Suitable for depaneling straight line, arc, and circular connectted boards.
7, Enclosed operating room, security and low noise.
| Model | RM-F500 | ||
| Structure | Single Spindle,single platform | ||
| Efficienty cutting length | 270*220mm(x*Y) | ||
| Cutting types | Straight line, arc, circular | ||
| Moving speed | X/Y/Z axis 300*250*90mm/s | ||
| Dust Collection method | Upper collection | ||
| Spindle | 20000~40000rpm | ||
| Routing Spindle | Max40000rpm | ||
| Cutting speed | 1-100mm/s adjustment | ||
| Cutting accuracy | ±0.03mm | ||
| Repeat accuracy | ±0.01mm | ||
| Programming | Teach box | ||
| External connect | USB | ||
| Router kit | milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel | ||
| Power supply | 220V/110V,50/60Hz | ||
| Board thickness | 0.8-3mm | ||
| Dust collector size | 600*500*500mm | ||
| Dust collector power | 750W,1HP | ||
