Automatic CCD Positioning Dual Table Glue Dispensing Machine for Speakers

Automatic CCD Positioning Dual Table Glue Dispensing Machine for Speakers

Brand Name: HSTECH
Model Number: HS-VS400
MOQ: 1 set
Price: Negotiable
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detail Information
Place of Origin:
China
Certification:
CE,TUV
Product Name:
3Axis Visual Glue Dispensing Machine
Axis:
3 Aixs Or 5Axis
Power Supply:
AC220V/110V,500W
CCD Resolution:
2.5 μm
Machine Weight:
600kg
Machine Dimension:
1060x1200x1700mm
Condition:
New
After-sales Service Provided:
Online Support,Video Technical Support
Packaging Details:
Wooden case,
Supply Ability:
100 sets per month
Product Description

Automatic CCD Positioning Dual Table 3 Axis Visual Glue Dispensing Machine



Product introduction



1.Equipped with intelligent rapid visual recognition system.
2.Operator-friendly, as camera identifies product orientation regardless of angle.
3.Uses Windows XP for intuitive operation and learning.
4.Hardware-controlled glue dispensing for speed and precision.
5.Versatile for dispensing various products, including electronics, LEDs, toys, semiconductors, speakers, and security devices.



Machine Specification



Product name Visual Glue Dispensing Machine
Model HS-VS400
Transmission height 920±20mm
Table size 300*400mm
Table qty single or dual table up to customer
Fixture customized
CCD resolution 2.5 μm
Max speed 1000mm/min
Glue viscosity range ≤5000LPS
Repeat accuracy ±0.02mm
Recognition accuracy ±0.0125mil
Power supply AC220/110V,500W
Air pressure 0.5~0.7Mpa
Glue tank 10L,manual stirring
Light source LED light source
Linear guide adjustment Intelligent adjust
Programming mode Manual teaching
Software Windows+dispensing software
Spraying method Automatic
Total power 2.6kW
Machine body Stainless steel
Machine weight 600kg
Machine dimension 1060x1200x1700mm





About Product

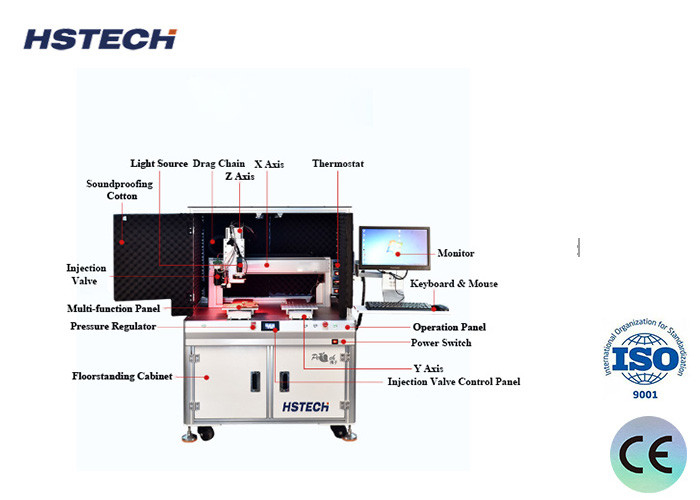

Automatic CCD Positioning Dual Table Glue Dispensing Machine for Speakers 0



About Details

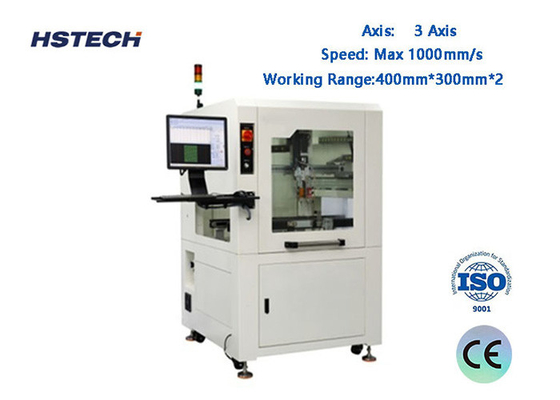

Automatic CCD Positioning Dual Table Glue Dispensing Machine for Speakers 1



About Packaging



Automatic CCD Positioning Dual Table Glue Dispensing Machine for Speakers 2       Automatic CCD Positioning Dual Table Glue Dispensing Machine for Speakers 3
