High-Efficiency Dual Platform Offline PCBA Router Machine For Smt Assembly Line Pcb Board
PCBA Router Machine:
Machine introduction:
This automatic PCB router machine using high speed-routing spindle, equipped with double platform, 4 axis servo motor driven,
the spindle moving according to the preset programming, automatic separating the stamp hole connectted board, curve board,and other inregular shape boards.
The machine use window operation system, CCD detection the separating track,can check the separating process any time.
Main features:

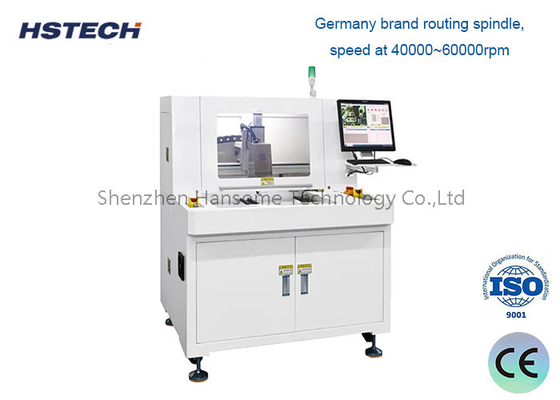

1, High speed routing spindle, 6000rpm.
2, Windows operation, manual location or file import.
3, CCD detection.
4, Internal dust-collector including.
5, Suitable for separating FPC board, aluminum board, FR4,etc.
6, Mainly used for separating stamp hole connected board, curve board, instead of traditional v-cut board.
High-precision processing
PCBA Router Machine uses high-speed rotating precision engraving and milling tools for processing.
It can realize high-precision cutting, drilling, groove processing and other processes on the edge of PCB.
The processing accuracy can reach ±0.05mm, meeting the strict requirements of electronic products on PCB size.
Automated processing
Equipped with automatic feeding and unloading system, it can realize fully automatic loading and unloading of PCBA boards.
The whole machine is easy to operate, and only a small amount of manual participation is required to complete large-scale processing.
Efficient production
The machine tool has a fast processing speed, which can greatly improve the efficiency of PCBA processing.
The processing time of a single PCBA board is usually about 1-2 minutes.
Strong compatibility
Supports processing of PCBA boards of various sizes and specifications and multi-layer structures.
The processing parameters can be automatically adjusted according to different PCBA designs.
Environmentally friendly
Adopting CNC precision control, the processing process has low noise and less dust.
Equipped with an efficient dust collection system to ensure a clean and hygienic working environment.
Sepcfication:
| Model | RM-560 | ||
| Structure | Single Spindle,dual work platforms | ||
| Machine Size(mm) | 1000*1200*1550 | ||
| Gross Weight | 700kg | ||
| Dust collector size(mm) | 625*600*1600 | ||
| Dust Collection method | Bottom collection | ||
| Work platform size | 300*400mm | ||
| Platform driving type | Double rotary platform,precision slicer with 3phase motor inverter | ||
| Driving system | X/Y/Z axis driven by servo motor,W axis driven by three phase motor frequency inverter | ||
| Routing Spindle | 6000rpm | ||
| Cutting speed | 1-100mm/s | ||
| Cutting accuracy | ±0.05mm | ||
| Repeat accuracy | ±0.02mm | ||
| Axis moving speed | 800mm/s | ||
| Z axis system | Screw driven,dual guide | ||
| Router kit | milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel | ||
| Tool life control | Software program control | ||
| Active protective function | safty light curtain | ||
| Security door | Manual door | ||
| Error alarm | Yes | ||
| Program method | Self programing,camera controlled by keyboard and mouser | ||

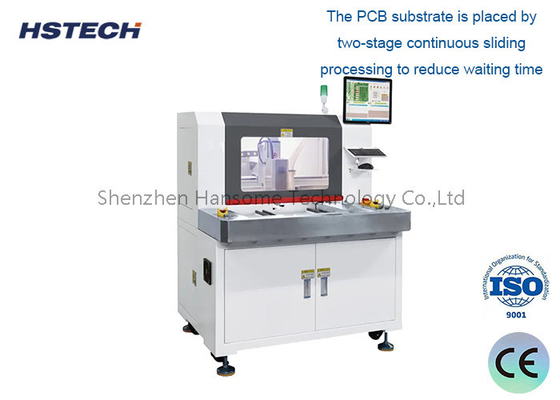

Machine details:
High Speed routing spindle and internal dust-collector
Windows7/10 English version operating system,simple for debugging and operation.
| PCBA Router Machine | |||
