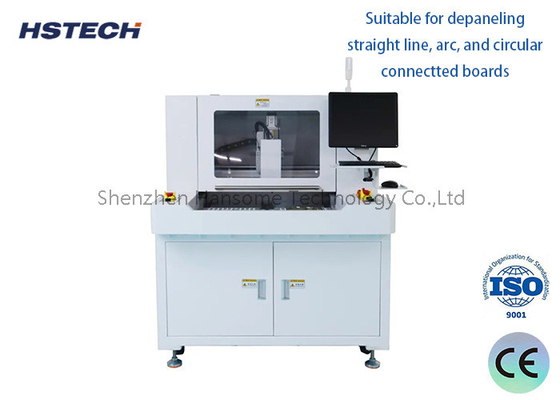

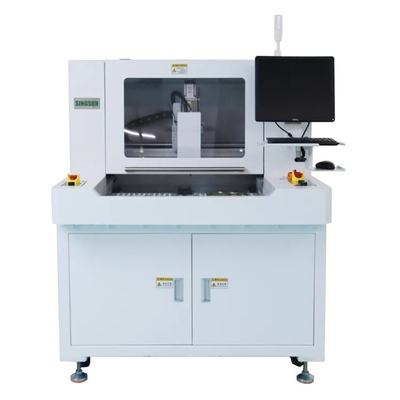

Dual-working Platform Visual Depanel Machine PCB Router Machine For Smt Production Line

Dual-working Platform Visual Depaneling Machine​:

An automated equipment used in the field of circuit board manufacturing, mainly used to quickly and accurately split large circuit boards into smaller independent circuit boards.

Basic structure:
Two independent workbench platforms can perform board splitting operations at the same time.
Equipped with a high-resolution visual system to achieve circuit board edge recognition and positioning.
Adopting a high-precision mechanical cutting mechanism, it can quickly split the board along the preset path.

Main features:

1. High efficiency: The dual workbench design can perform board splitting operations on two circuit boards at the same time.
2. Precision: The visual system accurately positions to ensure the accuracy and quality of board splitting.
3. Automation: The entire board splitting process is fully automatically controlled without manual intervention.
4. Flexibility: It can handle circuit boards of various sizes and structures.
5. Reliability: Stable mechanical structure and control system, reliable operation.

Working principle:
Place the circuit board to be split on one of the workbenches.
The visual system automatically identifies the edge of the circuit board and calculates the best board splitting path.
The mechanical cutting mechanism quickly splits the circuit board along the preset path.
At the same time, the other workbench can also perform board splitting operations for the next batch of circuit boards.

Application scenarios:
Widely used in the manufacturing of circuit board splitting for various electronic products.
Suitable for batch splitting of small circuit boards for mobile phones, computers, home appliances and other products.
It can also be used for splitting other circuit boards such as PCB boards and FPC flexible circuit boards.
