| Brand Name: | HSTECH |
| Model Number: | HS-LD330 |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |

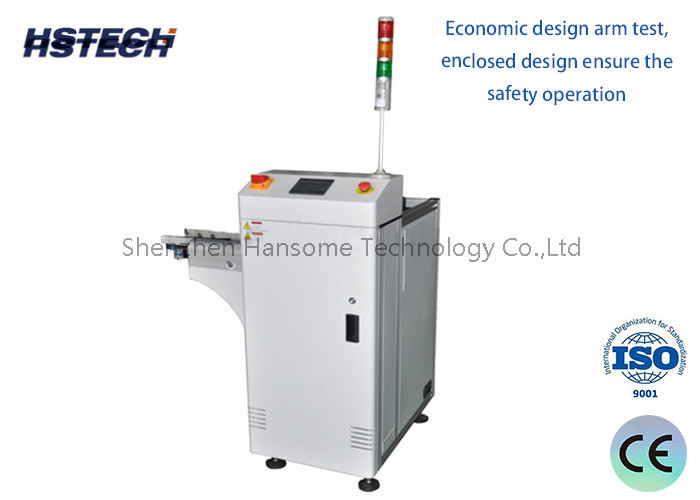

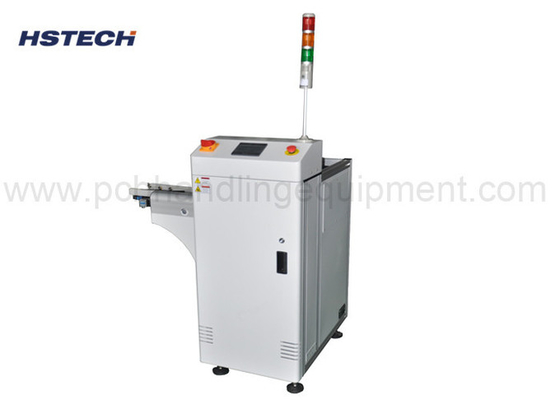

SMEMA Signal Max 530*460mm 90 Degree Compact PCB Unloader Equipment
Application
This is a compact printed circuit board unloader for collecting printed circuit boards at the end of the SMT production line.
Features
1, 90 degrees right angle unloading PCB, save factory space.
2, Sturdy design enhances stability.
3, PLC control, touch screen control panel.
4, Flat conveyor belt.
5, Economical design for arm testing, closed design ensures safe operation.
6, Smooth and parallel width adjustment.
7, Dual material bin application.
8, Upper and lower pneumatic clamps to fix the material frame.
9, Ensure no PCB damage during loading and unloading.
10, Compatible with SMEMA.
Specification
| Product name | right angle PCB unloader |
| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 1 pc |
| Conveyor speed | 0.5-20M/min or customized |
| Signal | SMEMA |
| Model | HS-CU250 | HS-CU330 | HS-CU390 | HS-CU460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| Machine dimension | 1100*1200*1200mm | 1310*1360*1200mm | 1430*1480*1200mm | 1430*1620*1200mm |
| Magazine size | 355*320*563mm | 460*400*563mm | 535*460*570mm | 535*530*570mm |
| Weight | 140kg | 200kg | 260kg | 300kg |
