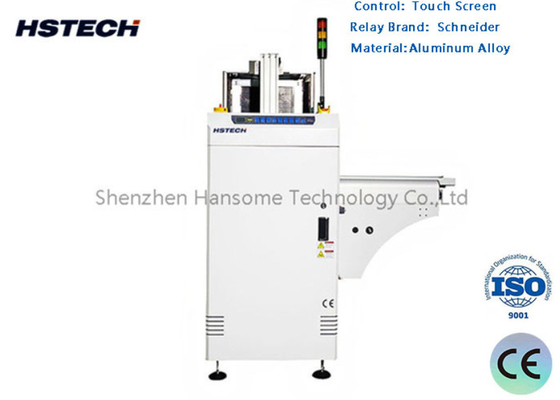

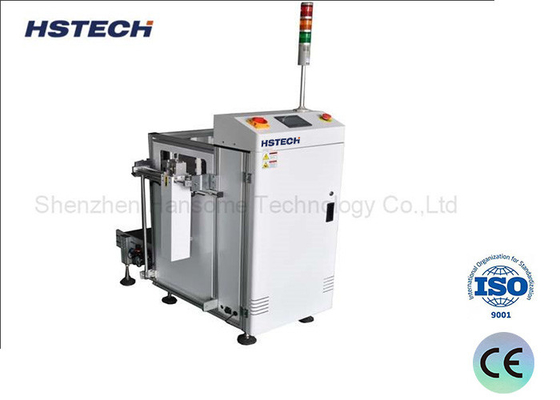

Intelligent SMT Production Line Automatic 90 Degree L Type PCB Unloader Machine
Technical Details
| Function | This unit is used for loading the PCBs,and transporting the PCB on the SMT production line |
| Transport height | 910±30mm |
| PCB loading time | Approx 6 seconds |
| Magazine replace time | Approx 30 seconds |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side(or specify) |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 2 pc |
| Pitch selection | 1-4(10mm pitch) |
| Conveyor speed | 0.5-20M/min or customized |
| Signal | SMEMA |
Specification
| Model | HS-LD330 |
| Efficient PCB length | 50*50~455*330mm |
| Machine Size(L*W*H) | 900*1223*1450mm |
| Magazine size | 460*400*563mm |
| Weight | 220kg |
Features
1. Modular design: Divide the system into interchangeable modules to simplify manufacturing, maintenance and upgrading.
2. Robust design: Enhance stability to ensure stable operation under various conditions.
3. Economical design testing: Optimize cost-effectiveness while ensuring performance.
4. Smooth Width Adjustment: Enables fast and smooth width adjustment.
5. Triple Shelf Application: Supports simultaneous handling of three shelves to improve productivity.
6. Pneumatic clamps: Top and bottom clamps ensure stable fixation of the shelves.
7. Protect PCB: Ensure that the loading and unloading process will not cause damage to the PCB.
8.SMEMA Compatible: Compatible with industry standards for easy integration and collaboration.
Machine drawing
Application
This device is used to load and transport printed circuit boards in SMT lines.
