| Brand Name: | HSTECH |
| Model Number: | HS-CU390 |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |

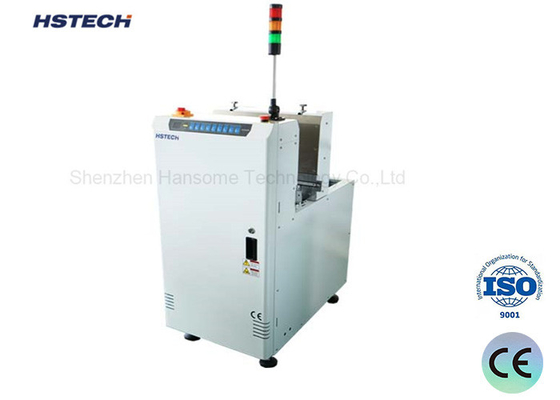

90 Degree PCB Unloader with LED Button Control and Front Operation for Convenience
Features
1.90 degree right angle unloading PCB, optimize the length of SMT production line.
2.Multi-bin design, does not affect the overall output.
3.LED button control, three-color light to show the status.
4.1.3mm thick, 3mm diameter, flat anti-static tape.
5. Stainless steel and aluminum profile structure, stable and easy to maintain.
6.PLC intelligent control.
7.Handle smooth adjustment of width.
8.3 Magazine capacity: upper 1 lower 2.
Specification
| Product name | 90 degree PCB Magazine unloader |
| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 1 pc |
| Conveyor speed | 0.5-20M/min or customized |
| Signal | SMEMA |
| Model | HS-CU250 | HS-CU330 | HS-CU390 | HS-CU460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| Machine dimension | 1100*1200*1200mm | 1310*1360*1200mm | 1430*1480*1200mm | 1430*1620*1200mm |
| Magazine size | 355*320*563mm | 460*400*563mm | 535*460*570mm | 535*530*570mm |
| Weight | 140kg | 200kg | 260kg | 30 |
Application
SMT production line 90 degree PCB magazine unloader, automatically collects PCBs at 90 degree right angle, saving the length of production line. Equipped with special pusher plate, easy to push PCB into the magazine shelf.
