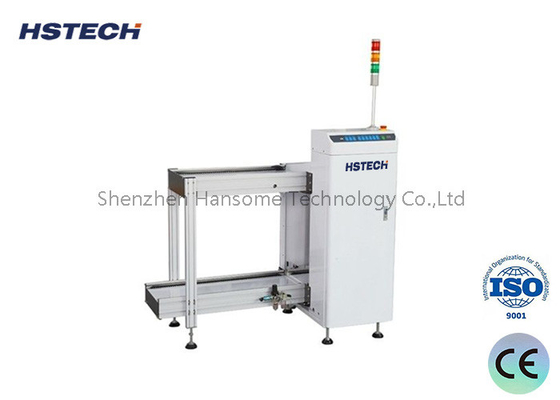

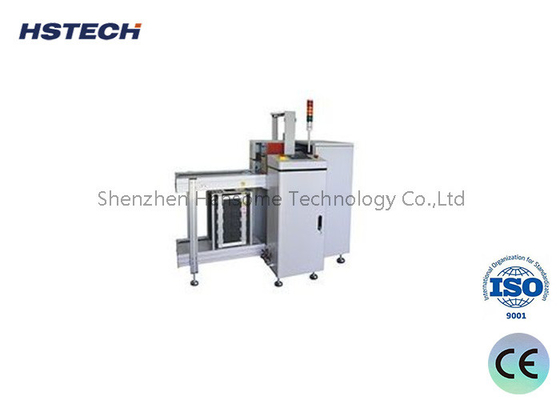

Belt Transporting PCB Width Adjustment 3 Color Display SMT Magazine Loader
Features
1. Width adaptability: The machine supports four PCB width options, including 250mm, 330mm, 390mm and 460mm, to meet the PCB loading needs of different sizes.
2. High precision pusher: PCB pusher with precision design ensures that PCB is stable and accurate in the push process and reduces the risk of damage.
3. Color status indicator: equipped with three color status display lights, intuitive display of the current working state of the machine, easy for users to quickly understand the operation of the machine.
4. Magazine configuration: The standard configuration includes 3 magazines, 1 at the top and 2 at the bottom, which is convenient for continuous loading and replacement of PCB and improves production efficiency.
5. Control options: Standard configuration for LED button control, easy and intuitive operation. At the same time, the optional touch screen control is provided to meet the diversified operation needs of users.
6. Stable structure: stainless steel is used to ensure that the structure of the machine is strong and stable, and can maintain high precision and stability in long-term use.
7. Smooth adjustment: The width adjustment mechanism is designed smoothly and parallel to ensure that the PCB will not be damaged by uneven force during the adjustment process.
8. Protection mechanism: The machine takes multiple protection measures during the loading process to minimize the risk of PCB damage, but please note that due to factors such as production environment and operation, the PCB cannot be completely guaranteed not to be damaged during the loading process.
9.CE certification: This machine has passed the CE certification, in line with the safety and quality standards of the European market, can rest assured in the European market sales and use.
Specification
| Model | HS-LD330 |
| Product name | PCB Magazine Loader |
| Transport height | 920±20mm |
| PCB loading time | Approx 6 seconds |
| Magazine replace time | Approx 30 seconds |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side(or specify) |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 2 pc |
| Pitch selection | 1-4(10mm pitch) |
| Conveyor speed | 0.5-20M/min or customized |
| Signal | SMEMA |
Model selection
| Model | HS-LD250 | HS-LD330 | HS-LD390 | HS-LD460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| Machine Size | 1400*800*1200mm | 1650*880*1200mm | 1800*940*1200mm | 1800*1010*1200mm |
| Magazine size | 355*320*563mm | 460*400*563mm | 535*460*570mm | 535*530*570mm |
| Weight | 140kg | 180kg | 220kg | 260kg |
Application
This machine is a PCB loader specifically designed for the early stages of an SMT line, responsible for smoothly pushing the PCB from the magazine rack to the downstream machine of the line, thus starting the entire production process.This machine is a PCB loader specifically designed for the early stages of an SMT line, responsible for smoothly pushing the PCB from the magazine rack to the downstream machine of the line, thus starting the entire production process.
