CCD Vicual Aligement Double Platform Offline PCBA Router Machine With 4 Axis Motion Control

CCD Vicual Aligement Double Platform Offline PCBA Router Machine With 4 Axis Motion Control

Introduction

Offline PCBA Router Machine is an automated equipment for post-processing of printed circuit board assembly (PCBA), mainly used in the electronics manufacturing industry.

Product Overview:

Offline PCBA Router Machine is an automated equipment specifically used for post-processing such as cutting and deburring of assembled PCBA.
It can accurately cut and edge process PCBA along the pre-designed path to ensure that the size and appearance of PCBA meet the requirements.
It is widely used in the post-processing of PCBA in the fields of electronic product manufacturing, communication equipment, industrial control, etc.

Main functions and features:
High degree of automation greatly improves processing efficiency and consistency.
Adopt high-precision CNC cutting tools and positioning mechanisms to ensure processing accuracy and quality.
Programmable processing parameters, such as cutting depth, cutting speed, etc., meet the needs of different PCBA materials and sizes.
Equipped with automatic loading and unloading mechanisms, the processing process can be completed without manual intervention.
Integrated automatic control system to achieve intelligent monitoring and fault diagnosis.
Compact design, small footprint, can be seamlessly integrated with the production line.
Simple operation and convenient maintenance ensure long-term stable operation of the equipment.

Main application areas:
Manufacturing of consumer electronic products such as mobile phones, tablets, and laptops.
Manufacturing of communication equipment, such as routers, switches, base stations, etc.
Manufacturing of industrial control equipment, such as industrial controllers, industrial robots, etc.
Manufacturing of medical electronic equipment, such as medical diagnostic equipment, therapeutic equipment, etc.
Post-processing of PCBA for other electronic products.

Selection and use suggestions:
Choose the appropriate Offline PCBA Router Machine model based on the PCBA size, material, quantity, and other factors of the production line.
Operate and maintain in strict accordance with the manufacturer's instructions and maintenance manual.
Check the tool wear regularly and replace and repair it in time.
Can cooperate well with upstream and downstream equipment such as testers, assembly lines, etc.

Main features:

1, Provide customers a high performance,high stable and security industrial equipment, using high precision linear guide, control card, and servo motor.

2, 4 axis motion control basen on the high resolution CCD vicual aligement, use double platform to make the production more efficiency.

3, Germany brand routing spindle, speed at 40000~60000rpm.

4, Taiwan Hiwin brand guide, make sure the moving system precision and smooth.

5, Tool life monitoring. After the cutter cuts a certain distance, it will automatically rise and fall to the position of another uncut blade.

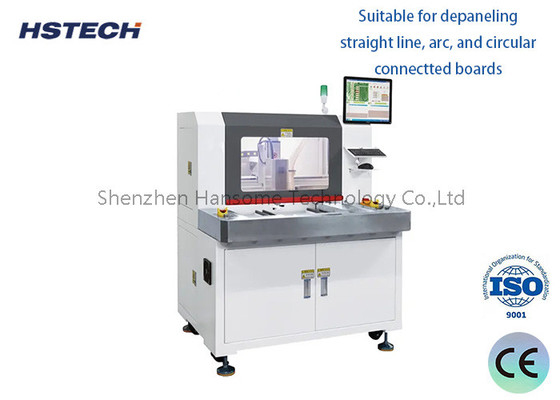

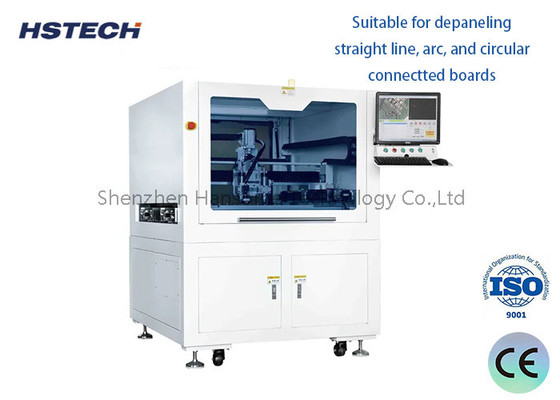

6, Suitable for depaneling straight line, arc, and circular connectted boards.

7, The PCB substrate is placed by two-stage continuous sliding processing to reduce waiting time and increase production.
