| Brand Name: | HSTECH |
| Model Number: | HS-ST400 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

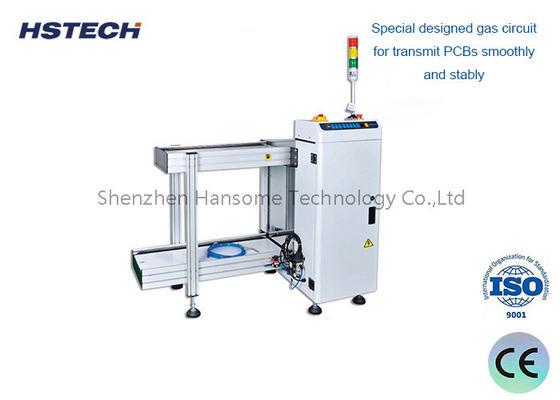

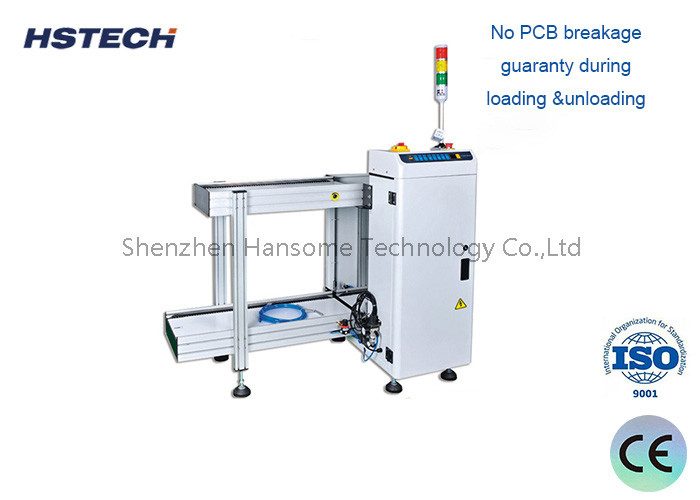

Width Adjustment Panasonic PLC CE Listed PCB Stacker Machine Bare Board Unloader
Application
This machine used for unloading/collection bare PCBs from SMT production line after laser marking.
Features
1. Panasonic PLC program control.
2. Traditional and simple LED button Control.
3, Smema signal connection.
4, Manual PCB thickness adjustment.
5, Hand crank PCB width adjustment.
6, LED display light status.
7, Aluminium structure, heavy bottom design to prevent shift.
8, Pass-through mode provided.
9, Only taken 10 seconds to change product line.
10, Uninterrupted Loading.
11, ESD transporting belt.
12, Self programmed machine error display,different errors has different code,each code has relevant maintenance instruction which paste in the back side of machine door
Specification
| Function |
Used for collecting bare PCB to smt line from upstream machine |
| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side |
| PCB thickness | 0.6~4.0mm |
| PCB components height | ±35mm |
| PCB feeding time | Approx. 10 seconds or Specify |
| Board weight | ≤3KG |
| Power supply | 220V,50/60Hz,±10% |
| Power | 0.05kW |
| Air pressure | 0.6Mpa |
| Air consumption | <20L/min |
| Signal | SMEMA |
| Model | HS-ST400 | HS-ST530 |
| Efficient PCB length | 50~400mm | 50~530mm |
| Transport PCB width | 50~400mm | 50~500mm |
| PCB thickness | Min 0.6mm | Min 1.0mm |
| Machine dimension | 650*670*1200mm | 800*880*1200mm |
| Weight | 170kg | 190kg |
Note
1.Before running the machine, first count the circumference in reverse and then count the circumference in positive order to prevent debris from damaging the rubber blanket, printing plate, etc. between the rollers.
2. The workplace should be kept clean and unobstructed, with no debris around the ground, workbench, and machines. Maintenance tools and spare parts should be placed in designated locations.
3.Before starting up, the required lubricating oil (grease) should be added to each oil injection point, lubrication point, and oil tank of the machine. Without approval, non crew members are not allowed to start or operate the machine without authorization. Assistants and apprentices should work under the guidance of the pilot.
4. Before starting the homework, the homework personnel must wear work clothes and shoes neatly, fasten the collar and cuffs, keep their pockets free of debris that may fall out, and do not wear watches or other accessories.
5.Before starting the machine, check if there are any debris in all parts of the machine body. Signal must be given (press the safety bell), and the front and back should be coordinated to ensure the safety of the surrounding area before starting the machine.
