| Brand Name: | HSTECH |
| Model Number: | HS-ST400 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

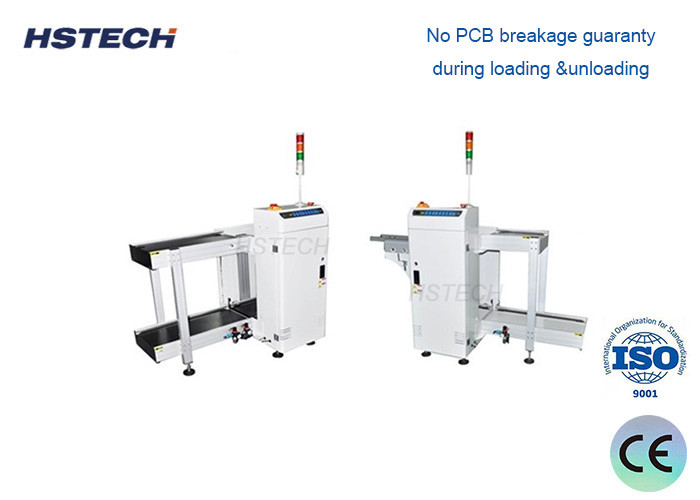

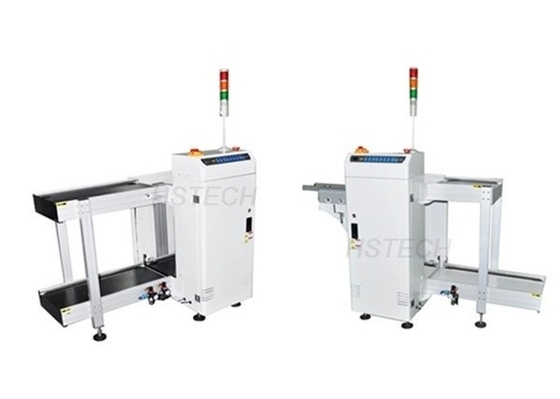

Width Adjustment Panasonic PLC CE Listed PCB Stacker Machine Bare Board Unloader
Application
This machine used for unloading/collection bare PCBs from SMT production line after laser marking.
Features
1. Panasonic PLC program control.
2. Traditional and simple LED button Control.
3, Smema signal connection.
4, Manual PCB thickness adjustment.
5, Hand crank PCB width adjustment.
6, LED display light status.
7, Aluminium structure, heavy bottom design to prevent shift.
8, Pass-through mode provided.
9, Only taken 10 seconds to change product line.
10, Uninterrupted Loading.
11, ESD transporting belt.
12, Self programmed machine error display,different errors has different code,each code has relevant maintenance instruction which paste in the back side of machine door
Specification
| Function |
Used for collecting bare PCB to smt line from upstream machine |
| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side |
| PCB thickness | 0.6~4.0mm |
| PCB components height | ±35mm |
| PCB feeding time | Approx. 10 seconds or Specify |
| Board weight | ≤3KG |
| Power supply | 220V,50/60Hz,±10% |
| Power | 0.05kW |
| Air pressure | 0.6Mpa |
| Air consumption | <20L/min |
| Signal | SMEMA |
| Model | HS-ST400 | HS-ST530 |
| Efficient PCB length | 50~400mm | 50~530mm |
| Transport PCB width | 50~400mm | 50~500mm |
| PCB thickness | Min 0.6mm | Min 1.0mm |
| Machine dimension | 650*670*1200mm | 800*880*1200mm |
| Weight | 170kg | 190kg |
