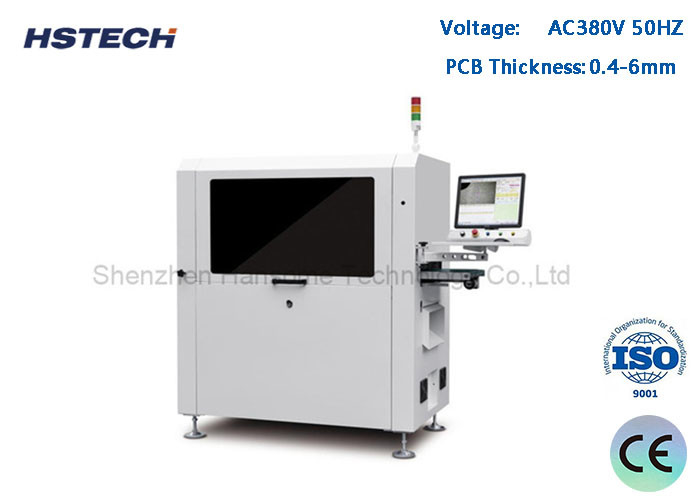

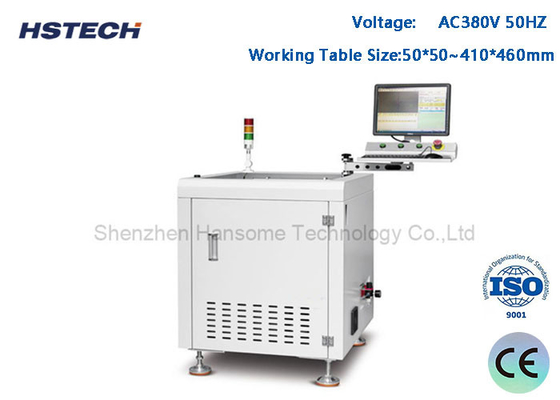

Double Platform Inline PCBA Router Machine Milling Cutter With Broken Knife Detection
Introduce
Inline PCBA Router Machine is a device used for electronic printed circuit board (PCB) depaneling, also known as PCB depaneling machine or PCB router. It is widely used in the electronics manufacturing industry to cut large PCB sheets into small-sized independent circuit boards.
The following are the main features and functions of Inline PCBA Router Machine:
1.Automated depaneling: Inline PCBA Router Machine is an automated equipment that can continuously perform PCB depaneling operations on a production line. It is usually used in conjunction with other equipment (such as PCB assembly lines) to achieve efficient automated production.
High-precision cutting: This machine uses precision cutting tools and control systems to achieve high-precision PCB depaneling. It can accurately cut PCB boards, ensuring the accuracy and quality of cutting lines.
2.Multi-tool configuration: Inline PCBA Router Machine is usually equipped with multiple tool positions that can accommodate different types and sizes of cutting tools. In this way, the appropriate tool can be selected according to the requirements of the PCB to achieve cutting of different shapes and sizes.
3.Fast cutting speed: The equipment has high-speed cutting function, which can quickly and effectively split PCB boards. This can improve production efficiency and reduce production cycle.
4.Precise positioning and clamping: Inline PCBA Router Machine has precise PCB positioning and clamping mechanism to ensure the stability and accuracy of PCB sheets during the cutting process. This avoids cutting deviations and damage, providing high-quality cutting results.
5.Programmable control: Equipment is usually equipped with a programmable control system that can be programmed according to different PCB designs and requirements. In this way, parameters such as cutting path, cutting depth and speed can be customized to meet the needs of different PCBs.
Features
1, Vacuum pick and place the PCBA.
2, Bottom cutting.
3, Double platform cutting.
4, With broken knife detection.
5, Connect the automatic production line.
6, SPC statistics function and match the ERP system.
7, Can be equipped with automatic tool change, explosion-proof function of vacuum cleaner and air volume
monitoring function.
Specification
| Model | ARX-811 | |
| Max PCB size | 260x340mm | |
| Min PCB size | 50x50mm | |
| PCB thickness | 0.4-6mm | |
| Transmission height | 900±50mm | |
| Transport direction | Left to right | |
| Transportation speed | 1500mm/s(max) Adjustable | |
| Loading mode | Section-type transportation guide rail | |
| Rail width adjustment | Automatic | |
| Communication interface | SMEMA | |
| PCB positioning | Fixtures positioning | |
| Picking system | Vacuum suction pick up | |
| Cutting spindel/speed | 60,000 rpm/min, Germany brand(optionnal 100,000 rpm/min, Germany brand) | |
| Cooling type | Self cooled type | |
| Automatic tool change | optional | |
| Break knife check | Yes | |
| Separating speed | 5-100mm/s | |
| Cutting accuracy | ±0.05mm | |
| Milling kit | φ0.8~φ3.0 right side ratation, shank Tungsten steel | |
| Repeat positioning accuracy | ±0.1mm | |
| Coordinate moving speed | 1000mm/s | |
| Out plate type | ESD belt transportation / batch panel forwardrding unit | |
| Waste collection | Waste cupboard collection | |
| Procedure programing | GERBER drawing import /editing program through visual system | |
| Air supply | 5-8 kg/cm³ | |
| Power supply | AC380V, 50/60Hz, 3KW | |
| Machine size | 1500x850x1600 mm | |
| Weight | Appro. 800kg | |
Machine size
Details
Bottom size dust collector.
Excellent CCD system with imaging camera, moritex lens and measurement - level light source, to support machine calibration,
compensation and positioning, with great stability and anti-distrubance capacity.
Omniponent vacuum suction chuck for picking, placing , unloading, and production.
Composite unloading system, used the ESD antistaic belt to transport the separated product on the top side, and the waster is transported on the bottom side, save much space by this method.
