Higher Efficiency Dual Platform Milling Type PCBA Router Machine With Drawer Feeding
Introduce
PCBA Router Machine (PCBA cutting machine) is an automated equipment used in the electronic manufacturing process. It is mainly used to cut assembled printed circuit board assemblies (PCBA) into independent individual circuit boards.
PCBA Router Machine has the following features and functions:
1.Cutting accuracy: PCBA Router Machine can achieve high-precision cutting operations, ensuring that PCBA is cut into individual circuit boards that meet the requirements. It uses precision cutting tools and control systems to achieve precise cutting positions and sizes.
2.Automated operation: These machines usually have automated operation functions and can operate through preset programs and parameters. The operator only needs to set the cutting parameters and place the PCBA to be cut, and the machine will automatically perform the cutting process, improving production efficiency and reducing manual operations.
3.Cutting method: PCBA Router Machine usually uses cutting tools, such as high-speed rotating cutters or cutterheads, to perform cutting operations. The cutters can be replaced and adjusted according to different cutting needs to accommodate different types and sizes of PCBA.
4.Cutting the adhesive layer: During the cutting process, PCBA Router Machine can cut the adhesive layer on the PCBA. The adhesive layer is the mark and label used to identify and protect the components, and the cutting machine can cut it off as needed to get a clear board edge and appearance.
5.Slag discharge and collection: The cutting process will produce cutting chips and waste materials. The PCBA Router Machine may be equipped with a slag discharge system and collection device to effectively remove and collect waste materials and keep the work area clean.
Features

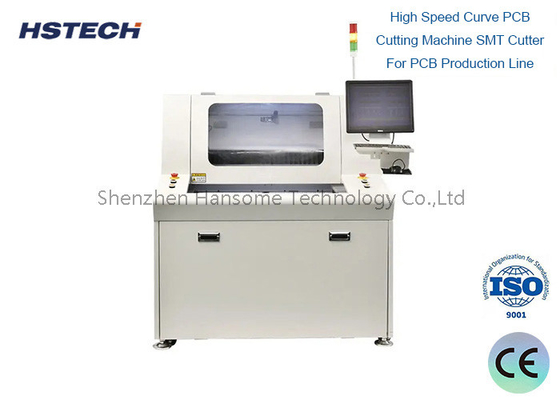

1, Milling type PCB Router with high precision and high cleanliness,dual parallel work platform and single pindle.
2, Low footprint,drawer type platform is designed to avoid the pollution of cleanliness room.
3, Top side dust collection with higher efficiency than the bottom side,and lower noise.
4, Dual platform design, easy to operate and maintenance.
5, Application for 350*350mm pcba, bigger size can be customized.
6, Upgrade with robot to realize inline function.(option)
Specification
| Model | CM-610 | CM-610max |
| Max PCB size | 350x350mm | 450x450mm |
| Min PCB size | 5x5mm | |
| PCB thickness | 0.4~6mm | |
| Work table height | 850mm | |
| Loading mode | Manual feeding and release | |
| PCB positioning | Magnetic thimble or jig | |
| Cutting spindle/speed | Sycotec,made in Germany,5000-60000rpm | |
| Cooling type | Self cooled type | |
| Break knife inspection | Yes | |
| Cutting speed | 1-100mm/s | |
| Cutting accuracy | ±0.05mm | |
| Milling kit | φ0.8~φ3.0 right rotation,shank tungsten steel | |
| Repeating positioning accuracy | ±0.02mm | |
| Coordinate moving speed | 1000mm/s | |
| Precedure programming | GERBER drawing import or editing through visual system | |
| Air supply | 5-8KG/cm³ | |
| Power supply | AC380V±5%,50/60Hz,3KW | |
| Machine dimension | 1250*1000*1650mm | 1350*1100*1650 |
| Machine weight | Appro 900kg | |
Machine dimension
Machine details

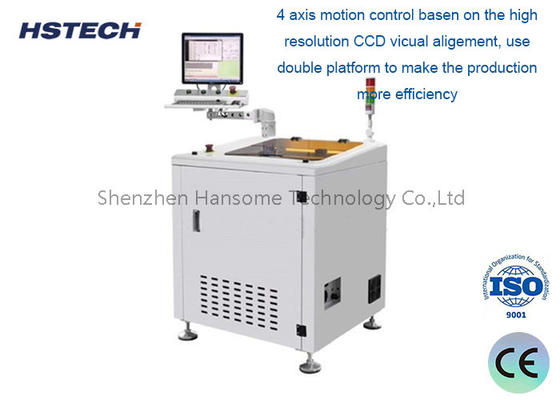

Super Vision System(Equipped with Germany Industrial imaging camera and Japan brand Moritex lens), and ESD brush top side dust collection device.
Intergrated cutting system(Cutting with jig or magnetic thimble), and Magnetic thimble PIN(patent design)
Reliable cutting system(Use Germany Sycotec spindle and frequency invert),Win7/Win10 english version system.
