Bottom Collection Offline PCBA Router Machine Automatic Separating Machine Use SUS304 Stainless Steel
Introduce

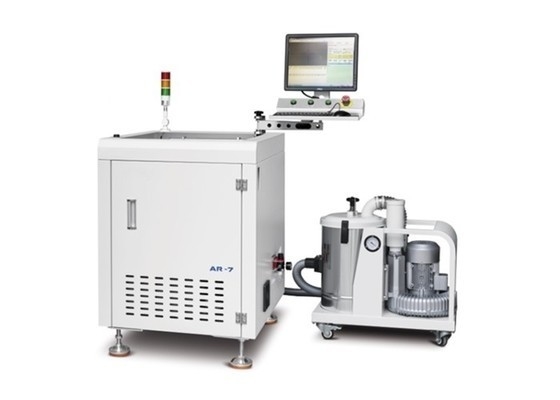

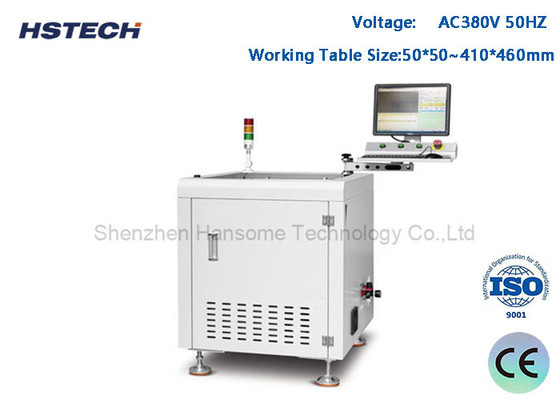

Offline PCBA router is a kind of equipment used in electronic product manufacturing. It is used to perform router processing on PCBA (Printed Circuit Board Assembly). It enables precise machining and customization by removing excess material on PCBA, such as edges, holes or unwanted parts.
Features
1, PC programing offline automatic separating.
2, Button side dust collecting.
3, Mini PCBA router, suitable for small size PCB, and factory room saving requirement solution.
4, Customized fixtures to fix the PCBA board.
5, CCD visual detection and programming, accurate with no mistakes.
6, Programming with compensation and dust collection.
7, Operation table size max 410-510mm PCBA.
8, Flexible for cutting two differenct type products.
9, Open platform for manual feeding and unloading, also can equipped with optional mechanical arm(robot).
Offline PCBA routers usually have the following features and functions
High-precision processing: The offline PCBA router uses precision processing tools and control systems to achieve high-precision router processing and ensure the accuracy and quality of PCBA.
Automated operation: Routing and milling machines usually have automated operation functions, including automatic loading and unloading of PCBA, automatic positioning and alignment, automatic switching of processing tools, etc., to improve production efficiency and operational convenience.
Multi-functional processing: The offline PCBA router can perform various types of processing, such as edge trimming, hole router, slotting, cutting, etc., to meet different PCBA processing needs.
Flexible programming and settings: Routers are usually equipped with programming and setting software, which can be flexibly programmed and set according to the design requirements of the PCBA to achieve customized processing.
Visual monitoring and adjustment: Some routers have visual monitoring systems that can display the processing process in real time, monitor the processing quality, and make necessary adjustments and corrections.
Data management and traceability: Offline PCBA routers usually have data management and traceability functions that can record and manage processing data for quality analysis and traceability.
Specification
| Model | AR-7 | AR-7 mini |
| Power supply | AC380V, 50/60Hz, 3KW | |
| Working size | 50x50~410x460mm(max) | 50x50~260x310mm(max) |
| Loading mode | Manual | |
| Cutting spindel/speed | 5000~60,000 rpm | |
| PCB thickness | 0.4-4mm | |
| Separating speed | 1-100mm/s | |
| Cutting accuracy | ±0.05mm | |
| Fixing type | Fixtures | |
| Programing | Visioin teaching, inline programing | |
| Milling kit | φ0.8~φ3.0 right side ratation, shank Tungsten steel | |
| Dust collection method | Bottom dust collection | |
| Dust collector | 3 phase, 380V, 1.2KW | |
| Noise | <75dB | |
| Control system | Industrial PC | |
| Spindle brand | Germany brand, Sycotec 4025 | |
| Servo motor | A5 series | |
| Motion control | 4 axis motion control board | |
| Lead screw | C5 grinding screw lead | |
| Linear guide | P rank silence guide | |
| Camera | Germany brand Imaging 40W industril camera | |
| Machine size | 700*800*930 mm | 500*650*930mm |
| Screen |
17inch
|
|
Applications
PCB Assembly Processing:
Used to cut out individual PCBAs from larger panels, which is common after the soldering and assembly processes.
Prototyping:
Ideal for rapid prototyping environments where small batches of custom PCBAs need to be cut and processed quickly.
Repair and Rework:
Useful in rework stations for removing or modifying specific sections of PCBAs, such as replacing components.
Production of Custom Shapes:
Allows manufacturers to create uniquely shaped PCBAs for specialized applications
