| Brand Name: | HSTECH |
| Model Number: | HS-LD330 |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |

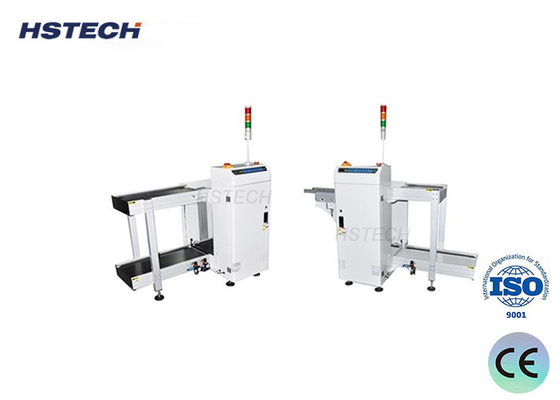

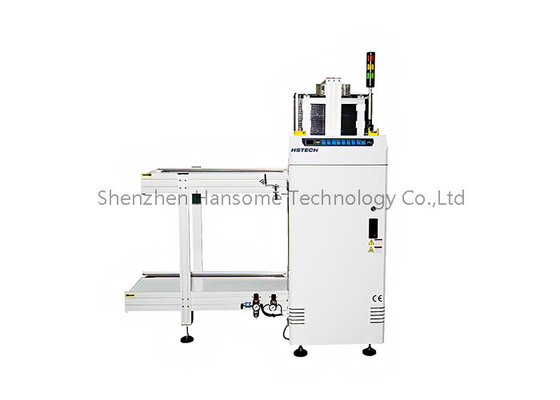

High Efficiency SMEMA Signal PCB Loader Handling Machine
Introduct
PCB loading and unloading machine is used for PCB feeding and conveying at the beginning of the SMT production line and receiving and storing the PCB at the end of the production line to the turnover rack. This machine adopts micro-control system with ball screw, the whole machine runs stably and accurately transmits. The operation control panel adopts a true color touch screen, which is intuitive to operate and easy to use. It is suitable for repeated transportation of single-sided or double-sided circuit boards, which greatly reduces labor costs and provides efficiency.
Application
This unit is used for loading the PCBs,and transporting the PCB on the SMT production line.
Features
1, Module design.
2, Stability enhanced by robust design.
3, Economic design arm test.
4, Top and bottom pneumatic clamps to secure magazine rack.
5, No PCB breakage guaranty during loading &unloading.
6,SMEMA compatible.
Specification
| Product name | PCB Loader Machine |
| Transport height | 910±30mm |
| PCB loading time | Approx 6 seconds |
| Magazine replace time | Approx 30 seconds |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side(or specify) |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 2 pc |
| Pitch selection | 1-4(10mm pitch) |
| Conveyor speed | 0.5-20M/min or customized |
| Signal | SMEMA |
Model selection
| Model | HS-LD250 | HS-LD330 | HS-LD390 | HS-LD460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| Machine Size | 1400*800*1200mm | 1650*880*1200mm | 1800*940*1200mm | 1800*1010*1200mm |
| Magazine size | 355*320*563mm | 460*400*563mm | 535*460*570mm | 535*530*570mm |
| Weight | 140kg | 180kg | 220kg | 260kg |
Attention
1. Power off the equipment or ensure that the lifting table moves into place before starting the automatic operation for the first time.
2. Keep your head and hands away from the machine during operation.
3. Oil the optical axis and clean the debris on the component lights on the chain.
Control Bottun and electric box
