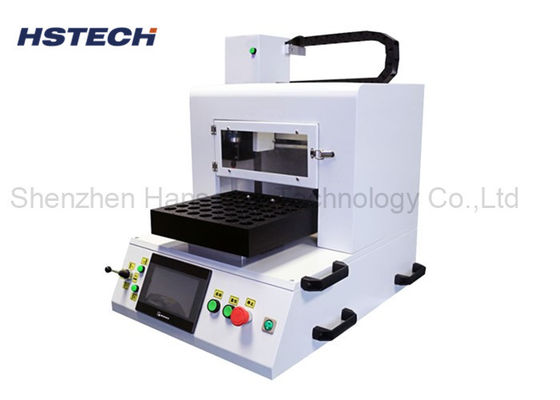

Mini PCB Router Machine Desktop Stamp Hole Curve PCB Router Machine With Stepper Motor

Mini PCB Router Machin Desktop Stamp Hole Curve PCB Router Machin with Stepper Motor

Introduction

This automatic PCB router machine is a mini automatic router machine, adopts desktop type, using 3 axis driven system, customzied the PCB fixing fixtures, manual load and unload the PCB for automatic depaneling,it's a easy and cost-effective PCB router machine.

PCB (Printed Circuit Board) router, also known as PCB milling machine, is a machine specially used to manufacture printed circuit boards. They play a vital role in electronics manufacturing, used in operations such as removing unwanted parts of multi-layer PCBs, creating circuit traces, opening holes, and customizing shapes.
PCB routers play the following important roles in the circuit board manufacturing process: removing excess material, creating circuit traces, opening holes, and customizing shapes
PCB routers are widely used in electronic manufacturing and circuit board manufacturing, including but not limited to the following application areas: electronic equipment manufacturing, communication equipment, industrial control systems, medical equipment, aerospace and defense.

Main features

1, 3 axis driven system, using step motor.
2, Flexible desktop type, easy to move and adjust.
3, Equipped with the dust-collector, keep the operation table clean.
4, When depaneling different, just replace the fixture and import different program.

5, All the guide and screw lead screw are dust-proof, make sure the machine operating accuracy.

6, Suitable for separating FPC board, aluminum board, FR4,etc.

Sepcfication

Machine application

Suitable for cutting fiber-glass board, aluminum board, cooper board, ceramic board, mainly used for smart phone, automative electronic, LED drive, PC board, connector, LED, etc industry.

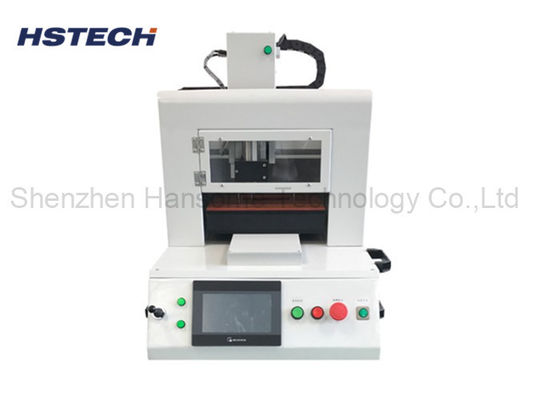

Machine details
