4 Axis Motion Control Double Platform Offline PCBA Router Machine With X/Y Axis 1000mm/S
Machine introduction
This PCB Router machine RM-F550 is a new developed Router Machine. It is used to depaneling a whole printed circuit board assemblies (PCBA) into individual PCBa boards. The machine adopt a very stable platform to ensure the working precision, the working platform size is 300*350mm.
It has a larger platform option at 400*600mm.The machine provides user friendly "visual" programming for rapid and accurate online programming,also can detect the depaneling process.

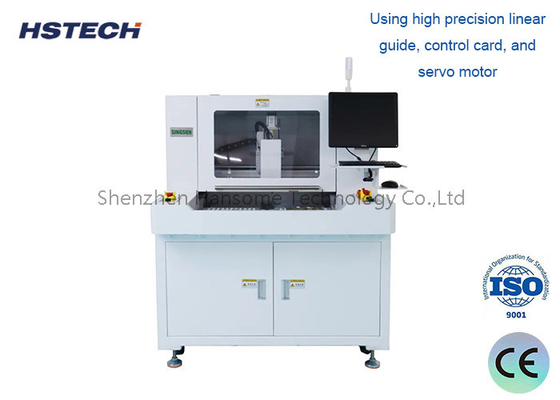

This PCB Separator adopt x,y,z servo motor and driving system and ball screw ,linear guide railensure machine run smooth and precisely,moving accuracy less than 0.01mm, routing accuracyess then 0.05mm.
Rotary double work station design makes continuous running ,greatly improve productionefficiency .Machine is equipped with high resolution CCD ,use direct teach programming method with crosscursor of CCD, very easy to operate , software can excute point ,line ,arc ,circle etc command to cutdifferent shape of panelled board ,it has mark positioning function ,can automatically correct thecoordinate offset when PCB position changed .Industrial PC ,Windows system and full english self developed softeware makes programming and operating very easyEuipped with quality ,air cooling long service life routing spindle .External silence vaccum cleaner provide a clean and low noise work environment .Miling cut can be used as 2 or 3 section , just set the parameter on sofeware , it has greatlyprolonged milling cut' service life.Equipped with anti static ionizing fan which can eliminate static and remove dust
2, 4 axis motion control basen on the high resolution CCD vicual aligement, use double platform to make the production more efficiency.

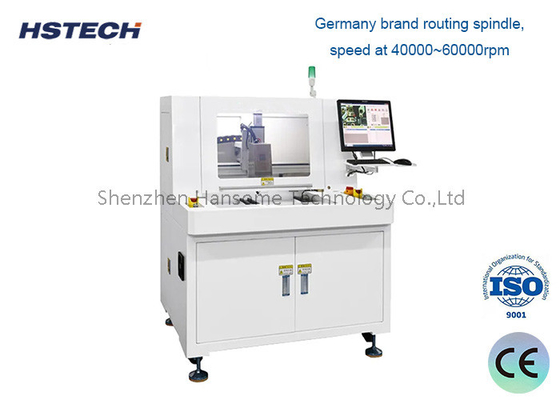

3, Germany brand routing spindle, speed at 40000~60000rpm.
4, Taiwan Hiwin brand guide, make sure the moving system precision and smooth.
5, Tool life monitoring. After the cutter cuts a certain distance, it will automatically rise and fall to the position of another uncut blade.
6, Suitable for depaneling straight line, arc, and circular connectted boards.
7, The PCB substrate is placed by two-stage continuous sliding processing to reduce waiting time and increase production.
| Model | RM-F328 | ||
| Structure | Single Spindle,double platform | ||
| Efficienty cutting length | 300*350mm | ||
| Cutting types | Straight line, arc, circular | ||
| Moving speed | X/Y axis 1000mm/s,Z axis 500mm/s | ||
| Dust Collection method | Upper collection | ||
| Spindle | 40000~60000rpm | ||
| Routing Spindle | Max60000rpm | ||
| Cutting speed | 1-100mm/s adjustment | ||
| Cutting accuracy | ±0.03mm | ||
| Repeat accuracy | ±0.01mm | ||
| Programming | colorful CCD | ||
| External connect | USB | ||
| Router kit | milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel | ||
| Power supply | 380V | ||
| Machine power | 2000W | ||
| Dust collector size | 600*470*730mm | ||
| Dust collector power | 2.2Kw,380V | ||
| Dust collector air pressure | 4-6KG/cm³ | ||
| Security door | Manual door | ||
| Error alarm | Yes | ||
| Program method | Self programing,camera controlled by keyboard and mouser | ||
