Spindle CCD System Inline PCB Depaneling Router Machine for High Speed Cutting
Features
1, Use Germany Sycotec Spinde, Max 1000000 RPM and automatic tooling switching function.

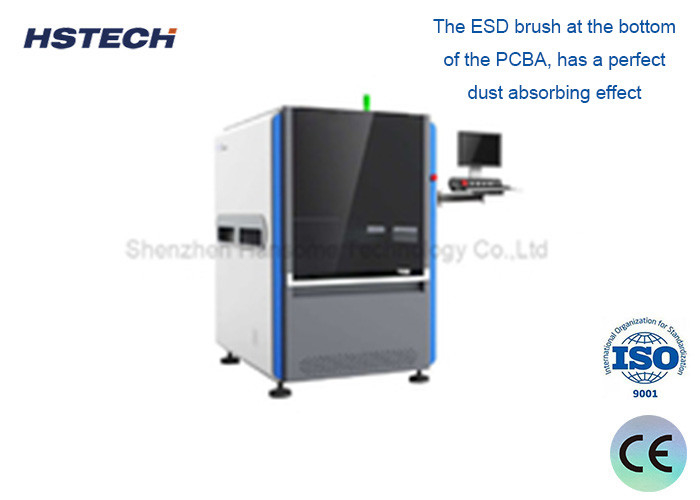

2,The ESD brush at the bottom of the PCBA, has a perfect dust absorbing effect.
3, Excellent CCD system with Imaging camera, Moritex lens and measurement -level light source, to support machine calibration,compensation and positioning, with great stability and anti-distrubance capacity.
4, Perfect Jig-less routing solution,support 20*20~350*350mm PCB size, and pick-up device can realize fast remove and install, high reliability and low cost.
5, Standard tooling repertory with three kinds of 3.175tools,each with 10pcs inside. With precision clamping system and lifting system,X1,Y1 and Z1 to switch the tools
6, Unload solution1: PCBA after cutting,will be placed to the ESD belt, then enter the test or assembley line.Unload solution 2: With batch unloading unit,the clamp will palce the tray box.
7, The milling cutter is driven by high speed spindle with the advantages of a reduced cutting force,high accuraty, low noise, and suitable for all shape pcba, like round,straight line, L or U type,squres and arc shapes.
8, Win7/Win10 english version system
Specification
| Model | ARM-710 | ARM-711 |
| Max PCB size | 350x350mm | |
| Min PCB size | 50x50mm | |
| PCB thickness | 0.4-6mm | |
| Transmission height | 900±50mm | |
| Transport direction | Left to right | |
| Transportation speed | 1500mm/s(max) Adjustable | |
| Loading mode | Section-type transportation guide rail | |
| Rail width adjustment | Automatic | |
| Communication interface | SMEMA | |
| PCB positioning | Top and bottom guide rail clamping | |
| Picking system | 360degree rotary clamping system, 2 groups of vacuum suction nozzles; 4 groups of ESD belt transportation/batch panel forwarding units at most | |
| Cutting spindel/speed | 100,000 rpm/min, Germany brand | 60,000 rpm/min, Germany brand |
| Automatic tool change | Yes | No |
| Break knife check | Yes | Yes |
| Separating speed | 1-100mm/s | |
| Cutting accuracy | ±0.05mm | |
| Milling kit | φ0.8~φ3.0 right side ratation, shank Tungsten steel | |
| Repeat positioning accuracy | ±0.02mm | |
| Coordinate moving speed | 1000mm/s | |
| Out plate type | ESD belt transportation / batch panel forwardrding unit | |
| Waste collection | Outlet via track | |
| Procedure programing | GERBER drawing import /editing program through visual system | |
| Air supply | 5-8 kg/cm³ | |
| Power supply | AC380V, 50/60Hz, 3KW | |
| Machine size | 1000x1300x1600 mm | |
| Weight |
Appro. 1000kg
|
|
Machine size
Details
1, Automatic cutting tool change 2, Broken knife detection 3, Automatic production mode
4, SPC statistics function and match ERP system
5, Optioned to explosion-proof vacuum dust collector and air volume monitor
Perfect PCBA routing system without Jig to fix the board, support 20x20~350x350mm pcb size, and the pick up device can realize
fast remove and install, heigh reliability and low cost.
ESD belt inline unloading
Unloading solution 1: PCBA after separating, will be placed onto ESD belt, then enter the test/assembly line.
Unloading solution 2: With batch unloading unit ARM710-1, the clamp will place to the tray box of ARM710.
