| Brand Name: | HSTECH |
| Model Number: | HS-LD330 |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
Right Angle SMEMA Signal Max 530*460mm 90 Degree PCB Unloader Equipment
Application

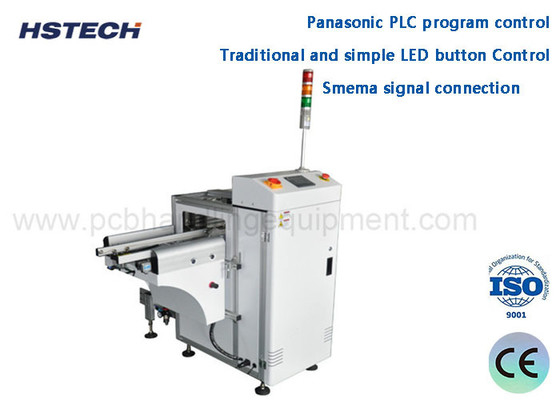

This unit is compact PCB unloader machine, used for collect PCBs at the end of SMT production line.
Features
1, 90 degree right angle PCB unloading, save the factory room.
2, Stability enhanced by robust design.
3, PLC control, touch screen control panel.
4, Flat transport belt.
5, Economic design arm test, enclosed design ensure the safety operation.
6, Smooth and parallel width adjustment.
7, Double magazine application.
8, Top and bottom pneumatic clamps to secure magazine rack.
9, No PCB breakage guaranty during loading &unloading.
10, SMEMA compatible.
Specification
| Product name | right angle PCB unloader |
| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 1 pc |
| Conveyor speed | 0.5-20M/min or customized |
| Signal | SMEMA |
| Model | HS-CU250 | HS-CU330 | HS-CU390 | HS-CU460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| Machine dimension | 1100*1200*1200mm | 1310*1360*1200mm | 1430*1480*1200mm | 1430*1620*1200mm |
| Magazine size | 355*320*563mm | 460*400*563mm | 535*460*570mm | 535*530*570mm |
| Weight | 140kg | 200kg | 260kg | 300kg |
