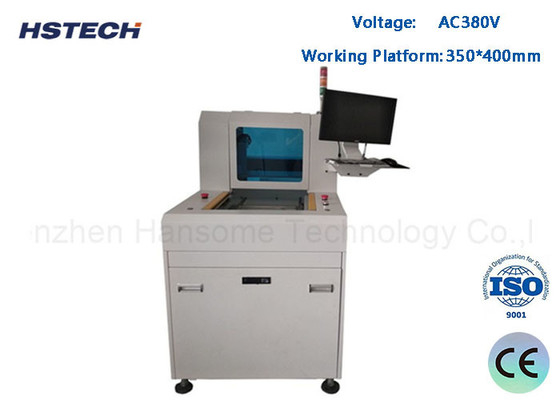

Single Platform Small Size Rat Bite Automatic PCB Depaneling Routing Machine
Machine introduction
This single platform autoamtic PCB router machine is a cost-effective PCB router, small size, save much room, suitable for small factories.
This machine has the full functions,also equiped with the dust-collector.
Working principle
Use the PC to programming, and the high speed milling cutter working according to the programs.
Advantages compared with traditional PCB separator

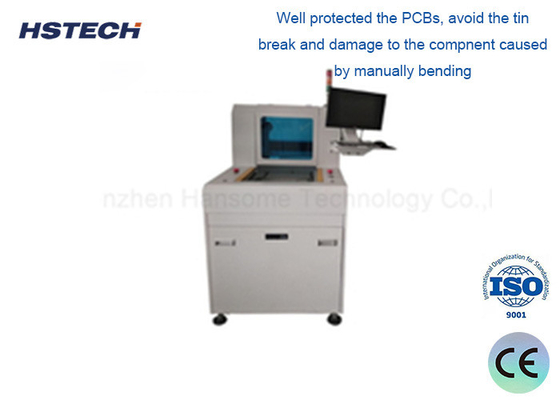

1, Well protected the PCBs, avoid the tin break and damage to the compnent caused by manually bending.
2, Ultra low force stress, avoids the stress produced mechanically by using punch or bending.
3, Suitable for cutting all kinds of curve PCB panels.
Main features
1, Max 40000rpm high speed routing spindle.
2, Chinese and English operation language selection control panel.
3, Windows operation, manual location or file import.
4, CCD detection.
5, External dust-collector including.
6, Suitable for separating all kinds of Curve PCB.
Sepcfication
| Model | RM-F318 | ||
| Structure | Single Spindle,single platform | ||
| Machine Size(mm) | 740*835*1240mm | ||
| Gross Weight | 550kg | ||
| Dust collector size(mm) | 700*600*1200mm | ||
| Dust Collection method | Bottom collection | ||
| Work platform size | 350*400mm | ||
| PCB positioning | Fixtures, functional thimble | ||
| Driving system | X/Y/Z axis driven by servo motor,W axis driven by three phase motor frequency inverter | ||
| Routing Spindle | Max40000rpm | ||
| Cutting speed | 1-100mm/s | ||
| Cutting accuracy | ±0.05mm | ||
| Repeat accuracy | ±0.02mm | ||
| Axis moving speed | 800mm/s | ||
| Z axis system | Screw driven,dual guide | ||
| Router kit | milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel | ||
| Tool life control | Software program control | ||
| Dust collector | 2.2Kw,380V | ||
| Dust collector air pressure | 4-6KG/cm³ | ||
| Programming | Online programming | ||
| Edit function | Straight line, curve line, circule,arc | ||
| Security door | Manual door | ||
| Error alarm | Yes | ||
| Program method | Self programing,camera controlled by keyboard and mouser | ||
Dust Collector Specification
| Size | 700*600*1200mm |
| Power | 2.2KW,3HP,AC380V |
| Noise | <200dB |
| Air in/out size | 6inch/8inch |
| Power wire | 5*2.5² |
| Filter | 16pcs |
Machine details
We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same timeour experienced engineering team always grasps smart factory's developing direction,updates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
