| Brand Name: | HSTECH |
| Model Number: | RM-F500 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
Manual Program 3 Axis Vertical PCB Router Machine for Arc and Circular Cutting
Machine introduction

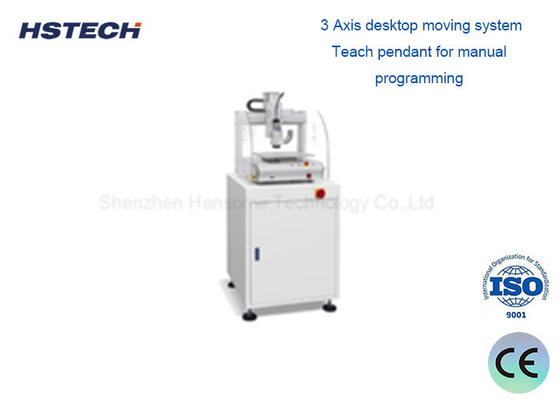

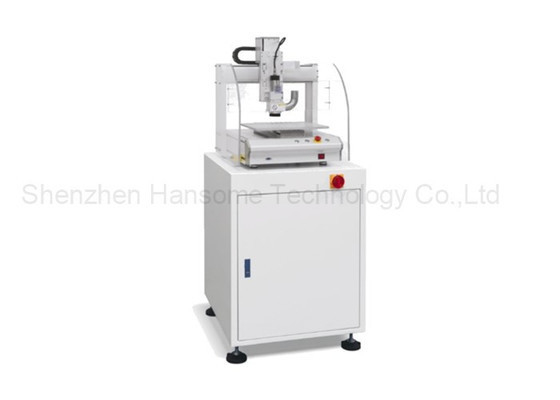

This machine RM-F500 is a vertical PCB router machine, the machine body including two parts, the bottom part is the structure and the upper part is a tabletop 3 axis moving PCB separating system. The separating system use the teach box for manual programming, so need manual set every mark points, it's a cost effective PCB router system.
Main features
1, 3 Axis desktop moving system.
2, Teach pendant for manual programming.
3, High speed routing spindle, speed at 20000~40000rpm.
4, Taiwan Hiwin brand guide, make sure the moving system precision and smooth.
5, Upper side dust collector method, make sure the platform clean.
6, Suitable for depaneling straight line, arc, and circular connectted boards.
7, Enclosed operating room, security and low noise.
Sepcfication
| Model | RM-F500 | ||
| Structure | Single Spindle,single platform | ||
| Efficienty cutting length | 270*220mm(x*Y) | ||
| Cutting types | Straight line, arc, circular | ||
| Moving speed | X/Y/Z axis 300*250*90mm/s | ||
| Dust Collection method | Upper collection | ||
| Spindle | 20000~40000rpm | ||
| Routing Spindle | Max40000rpm | ||
| Cutting speed | 1-100mm/s adjustment | ||
| Cutting accuracy | ±0.03mm | ||
| Repeat accuracy | ±0.01mm | ||
| Programming | Teach box | ||
| External connect | USB | ||
| Router kit | milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel | ||
| Power supply | 220V/110V,50/60Hz | ||
| Board thickness | 0.8-3mm | ||
| Dust collector size | 600*500*500mm | ||
| Dust collector power | 750W,1HP | ||
We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same timeour experienced engineering team always grasps smart factory's developing direction,updates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
