| Brand Name: | HSTECH |
| Model Number: | HS-UL250 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

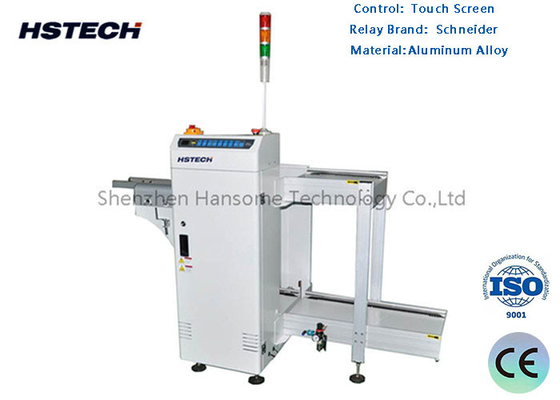

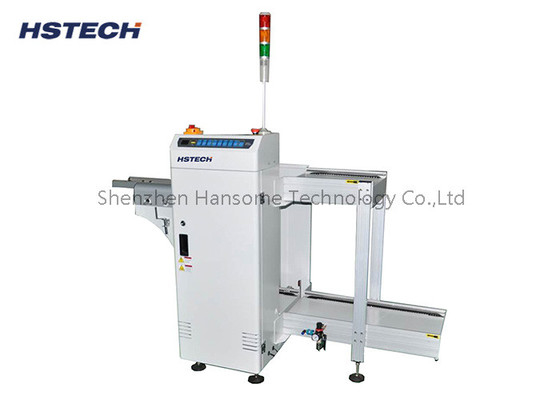

Front Operation SMT Line Intelligent SMT Production Line Automatic PCB Magazine Unloader Machine
Technical Details
| Function | This unit is used for unloading the PCBs. |
| Transport height | 910±30mm |
| PCB loading time | Approx 6 seconds |
| Magazine replace time | Approx 30 seconds |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side(or specify) |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 2 pc |
| Pitch selection | 1-4(10mm pitch) |
| Conveyor speed | 0.5-20M/min or customized |
| Signal | SMEMA |
Specification
|
Features
1. Module design.
2. Stability enhanced by robust design.
3. Economic design arm test.
4. Smooth and parallel width adjustment.
5. Three magazine racks application.
6. Top and bottom pneumatic clamps to secure magazine rack.
7. No PCB breakage guaranty during loading &unloading.
8. SMEMA compatible.
Machine drawing
Application
This unit is used for unloading the PCBs.
