SMT Production 90 Degree PCB Magazine Unloader LED Button Control MD Report 90 degree PCB Magazine Unloader
Application

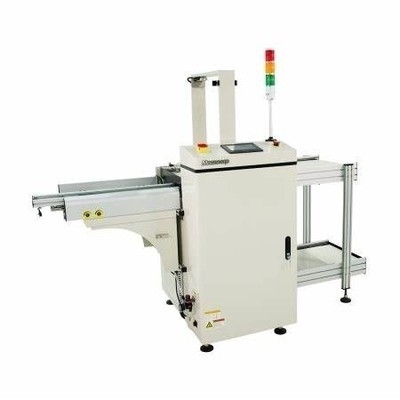

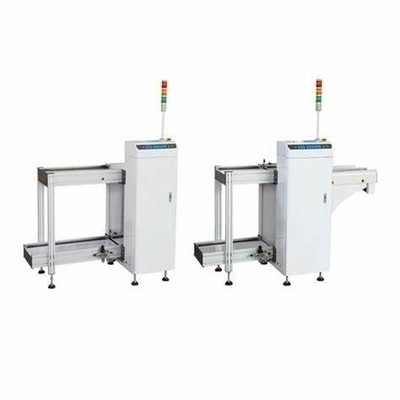

This unit is 90 degree PCB magazine unloader for SMT production line, used for automatic collecting PCBs in 90 degree right angle direction to save the length of the SMT line, the machine has a specially designed pusher which can push the PCBs from the transporting rail into the magazine racks.
Features
1, 90 degree right angle PCB unloading, save SMT production length.
2, Using multiple magazines, which wont impact the production throughout capacity.
3, LED button control mode with 3 lolor light display.
4, Smooth and parallel width adjustment with hand crank.
5, 3 magazines capacity: Top 1+ Down 2.
6, Top and bottom pneumatic clamps to secure magazine rack.
7, No PCB breakage guaranty during loading &unloading.
8, SMEMA compatible.
Specification
| Product name | 90 degree PCB Magazine unloader |

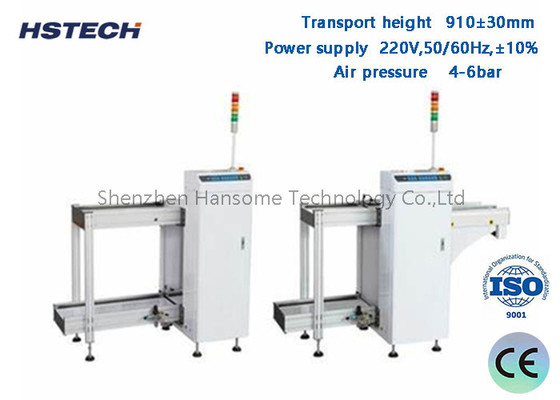

| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 1 pc |
| Conveyor speed | 0.5-20M/min or customized |
| Signal | SMEMA |
| Model | HS-CU250 | HS-CU330 | HS-CU390 | HS-CU460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| Machine dimension | 1100*1200*1200mm | 1310*1360*1200mm | 1430*1480*1200mm | 1430*1620*1200mm |
| Magazine size | 355*320*563mm | 460*400*563mm | 535*460*570mm | 535*530*570mm |
| Weight | 140kg | 200kg | 260kg | 300kg |
