| Brand Name: | HSTECH |
| Model Number: | HS-LD330 |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |

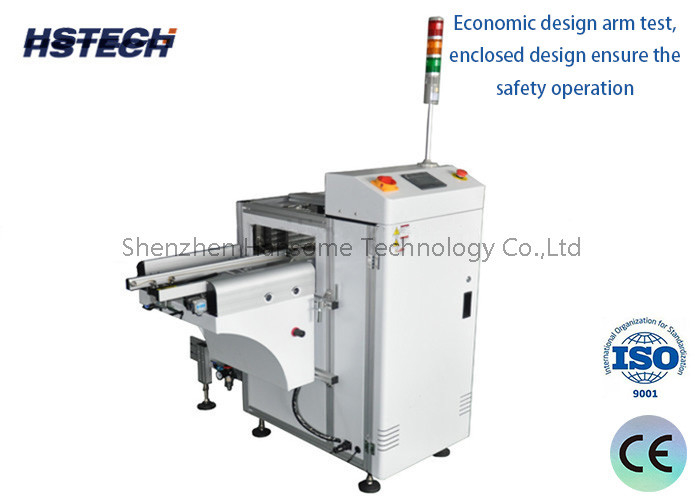

SMEMA Signal Max 530*460mm 90 Degree Compact PCB Unloader Equipment
Application
This unit is compact PCB unloader machine, used for collect PCBs at the end of SMT production line.
Specification
| Product name | right angle PCB unloader |
| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 1 pc |
| Conveyor speed | 0.5-20M/min or customized |
| Signal | SMEMA |
| Model | HS-CU250 | HS-CU330 | HS-CU390 | HS-CU460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| Machine dimension | 1100*1200*1200mm | 1310*1360*1200mm | 1430*1480*1200mm | 1430*1620*1200mm |
| Magazine size | 355*320*563mm | 460*400*563mm | 535*460*570mm | 535*530*570mm |
| Weight | 140kg | 200kg | 260kg | 300kg |
Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer. We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of SMT/THT production line board handling equipment.
We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same timeour experienced engineering team always grasps smart factory's developing direction,updates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
