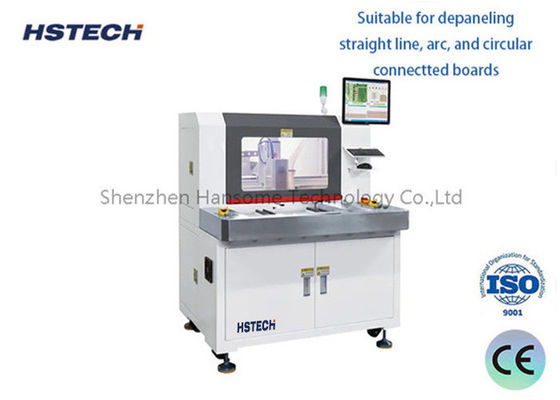

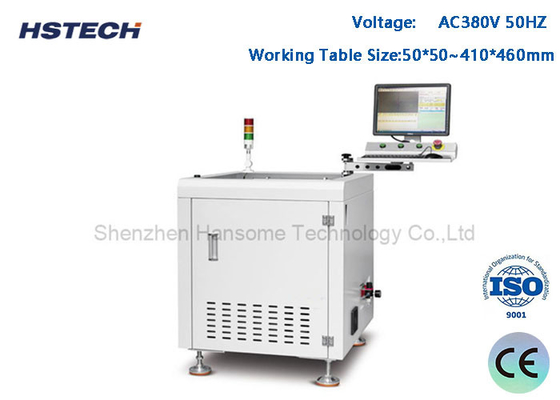

Double Work Platform PCBA Router Machine Manual Feeding Mini Offline PCB Depaneling Router Machine

Double Work Platform PCBA Router Machine Manual Feeding Mini Offline PCB Depaneling Router Machine

Introduction:

An Offline PCBA Router Machine is a specialized piece of equipment used in electronics manufacturing to cut or route printed circuit boards (PCBs) after the assembly process, specifically for printed circuit board assembly (PCBA). This machine is designed to operate independently of the main production line, allowing for flexibility in processing and improving overall efficiency.

Features:

1, Offline automatic separating.

2, It's a mini PCBA router, suitable for small size PCB, and factory room saving requirement solution.

3, Customized fixtures.

4, PC and CCD visual system.

5, Programming with compensation and dust collection.

6, Available for max 410-510mm size PCBA.

7, Flexible for cutting two differenct type products.

8, Open platform for manual feeding and unloading, also can equipped with optional mechanical arm(robot).

Specification:

Applications

1. Cutting Panels:

   • Used to cut individual PCBs from panels after they have been assembled, ensuring that they are ready for testing or packaging.

2. Creating V-Cuts:

   • Ideal for making V-cuts on PCBs, which facilitate manual breaking along predefined lines for easy separation.

3. Custom Shaping:

   • Can create custom shapes or cutouts in PCBs, allowing for specialized designs and applications.

4. Prototype Development:

   • Useful in prototyping environments where quick adjustments and modifications to PCB shapes are often required.

Benefits

1. Increased Efficiency:

   • By operating offline, these machines can process PCBs without disrupting the main production flow, improving overall throughput.

2. Cost-Effective:

   • Reduces the need for manual cutting, which can be labor-intensive and prone to error, thus minimizing production costs.

3. Enhanced Precision:

   • High precision in routing ensures that PCBs are cut to exact specifications, reducing waste and improving product quality.

4. Flexibility:

   • Capable of handling various PCB designs and materials, making it adaptable to different production requirements.

5. Improved Workflow:

   • Streamlines the PCB manufacturing process by providing a dedicated solution for routing, allowing other machines to focus on assembly and testing.
