| Brand Name: | HSTECH |
| Model Number: | HS-CU390 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

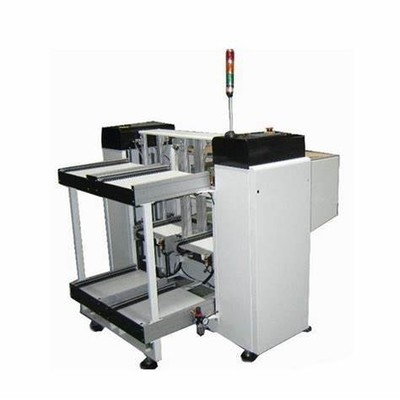

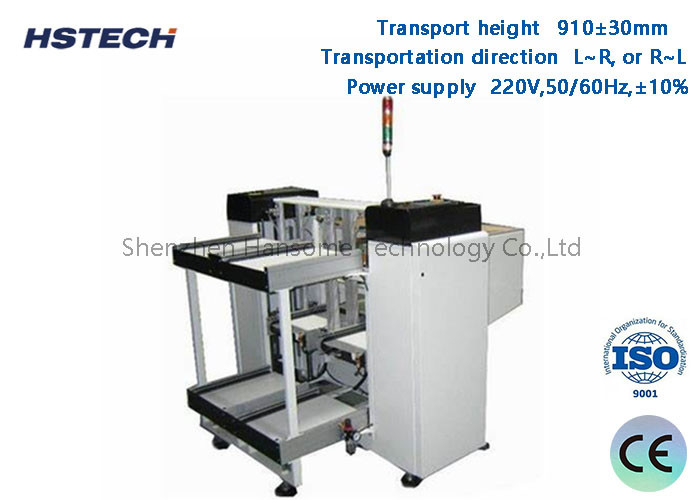

PLC Control SMT 90 Degree PCB Magazine Unloader with ESD Belt
Features:
1, 90 degree right angle PCB unloading, save SMT production length.
2, Using multiple magazines, which wont impact the production throughout capacity.
3, LED button control mode with 3 lolor light display.
4, Thickness 1.3mm, diameter 3mm edge flat ESD belt.
5, Stainless steel and aluminum profile machine structure, stable and easy for maintenance.
6, PLC control.
7, Smooth and parallel width adjustment with hand crank.
8, 3 magazines capacity: Top 1+ Down 2.
Specification:
| Product name | 90 degree PCB Magazine unloader |
| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 1 pc |
| Conveyor speed | 0.5-20M/min or customized |
| Signal | SMEMA |
| Model | HS-CU250 | HS-CU330 | HS-CU390 | HS-CU460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| Machine dimension | 1100*1200*1200mm | 1310*1360*1200mm | 1430*1480*1200mm | 1430*1620*1200mm |
| Magazine size | 355*320*563mm | 460*400*563mm | 535*460*570mm | 535*530*570mm |
| Weight | 140kg | 200kg | 260kg | 30 |
Application:
This unit is 90 degree PCB magazine unloader for SMT production line, used for automatic collecting PCBs in 90 degree right angle direction to save the length of the SMT line, the machine has a specially designed pusher which can push the PCBs from the transporting rail into the magazine racks.
