| Brand Name: | HSTECH |
| Model Number: | HS-BD4 |
| MOQ: | 1 pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per week |
| Model | HS-BD4 |
| MCU | Industrial PLC |
| Programming | Text Demonstration Programmer |
| Drive mode | Precise Stepping Motor |
| Max Dispensing Diameter | 160mm(two station),110mm(four station) |
| Motor Speed | 0 ~ 300 RPM |
| Positioning Accuracy | ±0.1mm |
| Z-axis Adjust Range | 250mm |
| Z-axis Working Travel | 50mm |
| Dimension (L*W*H) | 420mm*532mm*532mm |
| Weight | 35Kg |
| Working Power | AC220V/50~60Hz/200W |
| Working Air Pressure | 0.4~ 0.6Mpa(no condensation) |
| Working Temperature and Humidity | Temperature: 0~40℃,Humidity: 20~90% |

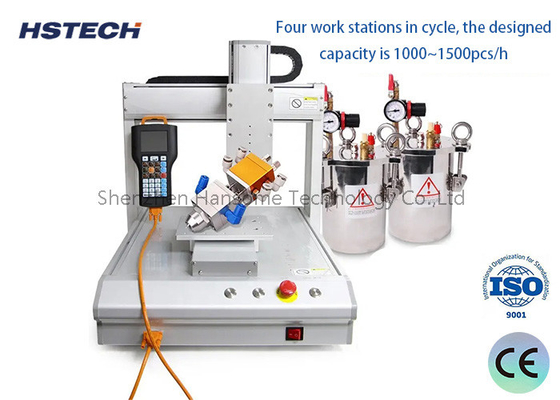

1, Four work stations in cycle, the designed capacity is 1000~1500pcs/h.
2, Equipped work piece detector to decide gluing or skip.
3, Gluing track can be set as full circle, single point or segmented arc etc.
4, Working mode can be four-station or two-station.
5, It is easy to learn and operate with touch screen and buttons, for different glue with different settings ensure the best performance.
Choosing the type of dispenser
1.Standard dispenser
Syringe + dispensing controller, stable glue output, clean break, no leakage of glue dripping glue needle angle adjustable.
2.Sleeve Dispenser
Suction type dispensing valve + 330ML sleeve, specially designed for the branch silicone within 330ML, easy to use, no leakage of glue dripping, clean break.
3.Pressure drum dispenser
Pressure barrel + dispensing valve, stable glue quantity, clean break, no leakage of glue dripping. Suitable for dispensing large amount of glue, bulk glue products, save glue, save labor.
4.Dual station dispenser
Dual-station alternating work, while loading and unloading while dispensing, without stopping the machine, the efficiency is doubled.
5.Hot Melt Glue Dispenser
The hot melt glue cartridge is placed in a special heater, the glue is extruded using a dispensing controller, and the three-axis manipulator completes the dispensing path.
