| Brand Name: | HSTECH |
| Model Number: | HS-DS400 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

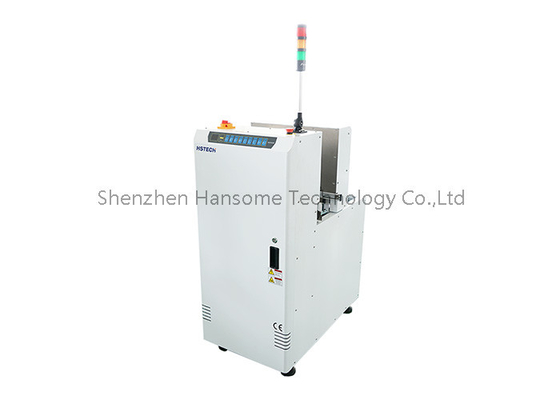

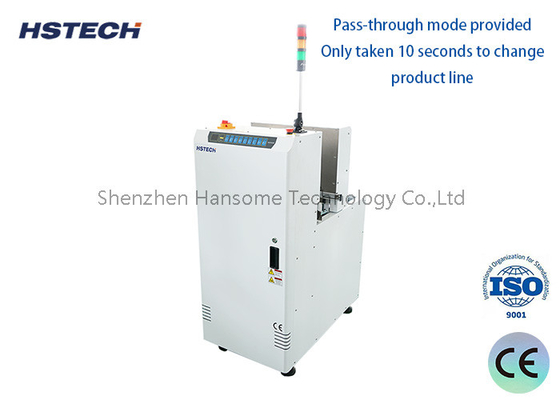

Omron Relay SMT Production Line PCB Destacker Panasonic PLC Bare board Loader
Features
1. Panasonic PLC program control.
2. Traditional and simple LED button Control.
3..Aluminum structure ,bottom weight design,not easy to shift.
4..By pass mode provide.
5..Smooth and precise translation (stepper motor).
6..Increased load without interference.
7..Minimize clearance between conveyor.
8.SMEMA compatible.
Application
This machine used for loading bare PCBs to smt line, stack load the circuit boards.
Specification
| Function |
Used for loading bare PCB to smt line after received down-stream machine signal. |
| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side |
| PCB thickness | 0.6~4.0mm |
| PCB components height | ±35mm |
| PCB feeding time | Approx. 10 seconds or Specify |
| Board weight | ≤3KG |
| Power supply | 220V,50/60Hz,±10% |
| Power | 0.05kW |
| Air pressure | 0.6Mpa |
| Air consumption | <20L/min |
| Signal | SMEMA |
| Model | HS-DS400 | HS-DS530 |
| Efficient PCB length | 50~400mm | 50~530mm |
| Transport PCB width | 50~400mm | 50~500mm |
| PCB thickness | Min 0.6mm | Min 1.0mm |
| Machine dimension | 503*770*1200mm | 600*920*1200mm |
| Weight | 110kg | 130kg |
