| Brand Name: | HSTECH |
| Model Number: | HS-DS400 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

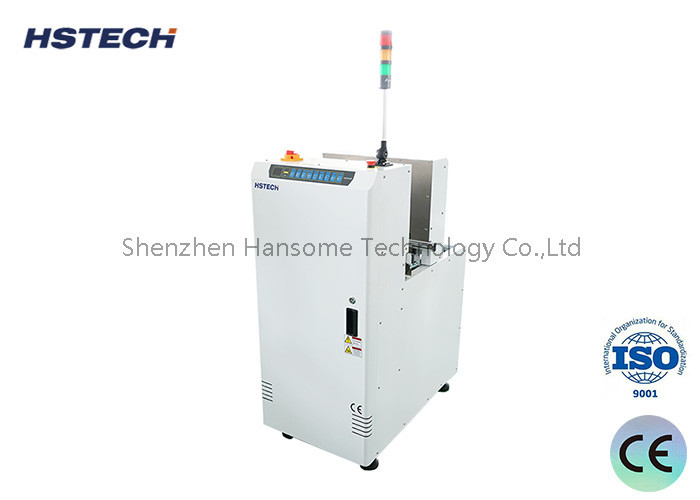

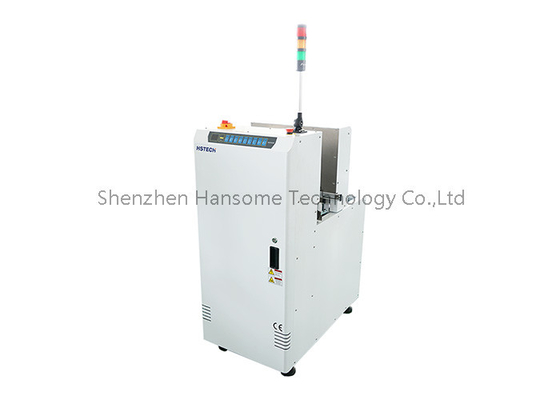

Heavy Bottom Design PCB Loader for 0.6~4.0mm Thickness
Features
1.PLC program control.
2.Aluminium structure, heavy bottom design to prevent shift.
3.Pass-through mode provided.
4.Only taken 10 seconds to change product line.
5.User friendly ‘soft touch‘ LED control panel.
6.Uninterrupted Loading.
7.SMEMA compatible.
Application
This machine used for loading bare PCBs to smt line, stack load the circuit boards.
Specification
| Function |
Used for loading bare PCB to smt line after received down-stream machine signal. |
| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side |
| PCB thickness | 0.6~4.0mm |
| PCB components height | ±35mm |
| PCB feeding time | Approx. 10 seconds or Specify |
| Board weight | ≤3KG |
| Power supply | 220V,50/60Hz,±10% |
| Power | 0.05kW |
| Air pressure | 0.6Mpa |
| Air consumption | <20L/min |
| Signal | SMEMA |
| Model | HS-DS400 | HS-DS530 |
| Efficient PCB length | 50~400mm | 50~530mm |
| Transport PCB width | 50~400mm | 50~500mm |
| PCB thickness | Min 0.6mm | Min 1.0mm |
| Machine dimension | 503*770*1200mm | 600*920*1200mm |
| Weight | 110kg | 130kg |
