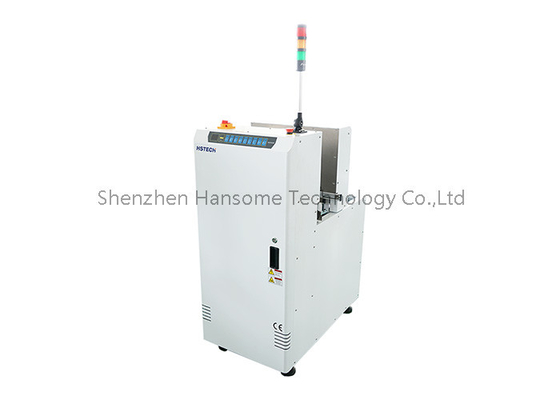

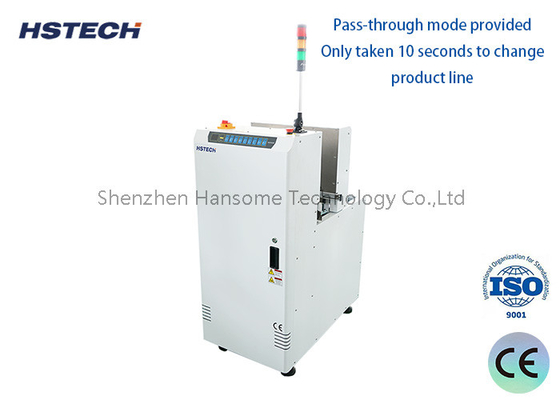

Omron Relay SMT Production Line PCB Loader for High-Speed Operation Equipment
Mainly in supporting PCB on-line laser marking machine, drilling machine, spray code high-speed operation equipment.
Features
1.Loader/Unloader pcb is less than 3 seconds.
2.The ease of use of type LED function control interface.
3.The continuous loader/unloader.
4.The optional through work mode.
5.The optional FAIL pcb distribution function (unloader).
6.FAIL pcb shunt track folding ( unloader ).
7.SMEMA compatible interface.
Application
This machine used for loading bare PCBs to smt line, stack load the circuit boards.
Specification
| Function |
Used for loading bare PCB to smt line after received down-stream machine signal. |
| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side |
| PCB thickness | 0.6~4.0mm |
| PCB components height | ±35mm |
| PCB feeding time | Approx. 10 seconds or Specify |
| Board weight | ≤3KG |
| Power supply | 220V,50/60Hz,±10% |
| Power | 0.05kW |
| Air pressure | 0.6Mpa |
| Air consumption | <20L/min |
| Signal | SMEMA |
| Model | HS-DS400 | HS-DS530 |
| Efficient PCB length | 50~400mm | 50~530mm |
| Transport PCB width | 50~400mm | 50~500mm |
| PCB thickness | Min 0.6mm | Min 1.0mm |
| Machine dimension | 503*770*1200mm | 600*920*1200mm |
| Weight | 110kg | 130kg |
