| Brand Name: | HSTECH |
| Model Number: | RM-F550 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |

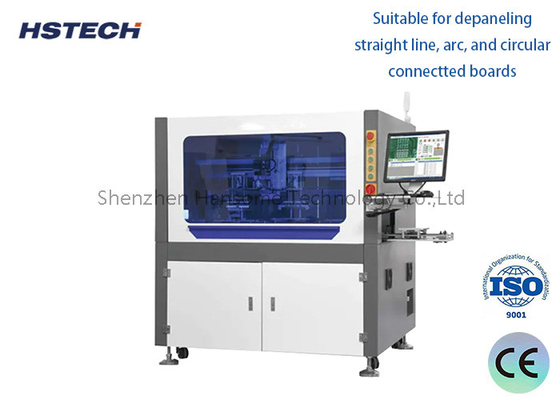

Double Platform PCB Router Machine for Depaneling Straight Line and Arc Boards
Machine introduction
PCB Board Cutting Machine
This equipment is especially suitable for automatic cutting of PCBA circuit board after plug-in.It can realize v-cut x, Y two-way automatic cutting, which is different from the traditional v-cut manual cutting in one direction. It greatly improves the efficiency of the board.
Main features
1. High quality.Circular knife is made of high speed tungsten steel.
2. Using double slide into place device, reduce the cutting waiting times, increase production capacity.
3.Programmable cutting types control: separate routing programming, separate circular cutting programming, mixed cutting
programming.
4.Visual system automatically corrects and identifies MARCK points or optical points.
5. Routing automatic check and prompt function. Set time limit (100H) for cutting, and prompt for tool change.
6.High quality.Circular knife is made of high speed tungsten steel.
Sepcfication
| Model | RM-F328 | ||
| Structure | Single Spindle,double platform | ||
| Efficienty cutting length | 300*350mm | ||
| Cutting types | Straight line, arc, circular | ||
| Moving speed | X/Y axis 1000mm/s,Z axis 500mm/s | ||
| Dust Collection method | Upper collection | ||
| Spindle | 40000~60000rpm | ||
| Routing Spindle | Max60000rpm | ||
| Cutting speed | 1-100mm/s adjustment | ||
| Cutting accuracy | ±0.03mm | ||
| Repeat accuracy | ±0.01mm | ||
| Programming | colorful CCD | ||
| External connect | USB | ||
| Router kit | milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel | ||
| Power supply | 380V | ||
| Machine power | 2000W | ||
| Dust collector size | 600*470*730mm | ||
| Dust collector power | 2.2Kw,380V | ||
| Dust collector air pressure | 4-6KG/cm³ | ||
| Security door | Manual door | ||
| Error alarm | Yes | ||
| Program method | Self programing,camera controlled by keyboard and mouser | ||
Machine details
