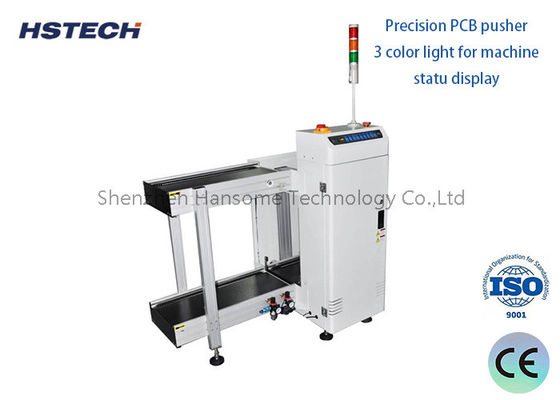

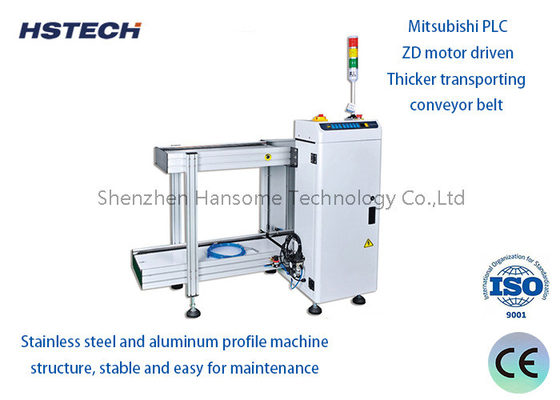

CE Certified PCB Loader for SMT Production Line with Stable Stainless Steel Structure
This equipment is used for the operation of PCB loading in the SMT line.
Features
1.4 PCB width options, 250mm/330mm/390mm/460mm.
2. Precision PCB push rod.
3.3 Color lights used for machine status display.
4. Standard work with 3 magazines, top 1 magazine, bottom 2 magazines.
5. Standard LED button control, optional touch screen control.
6. Stable stainless steel structure.
7. Smooth parallel width adjustment.
8. No PCB damage guarantee during loading process.
9. CE certification, applicable to the European market.
Specification
| Model | HS-LD330 |
| Product name | PCB Magazine Loader |
| Transport height | 920±20mm |
| PCB loading time | Approx 6 seconds |
| Magazine replace time | Approx 30 seconds |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side(or specify) |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 2 pc |
| Pitch selection | 1-4(10mm pitch) |
| Conveyor speed | 0.5-20M/min or customized |
| Signal | SMEMA |
Model selection
| Model | HS-LD250 | HS-LD330 | HS-LD390 | HS-LD460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| Machine Size | 1400*800*1200mm | 1650*880*1200mm | 1800*940*1200mm | 1800*1010*1200mm |
| Magazine size | 355*320*563mm | 460*400*563mm | 535*460*570mm | 535*530*570mm |
| Weight | 140kg | 180kg | 220kg | 260kg |
Application
This machine is a PCB loading machine, it used in the start of SMT production line, the machine push the PCB from magazine racks and transporting to the downstream machine of the production line.
